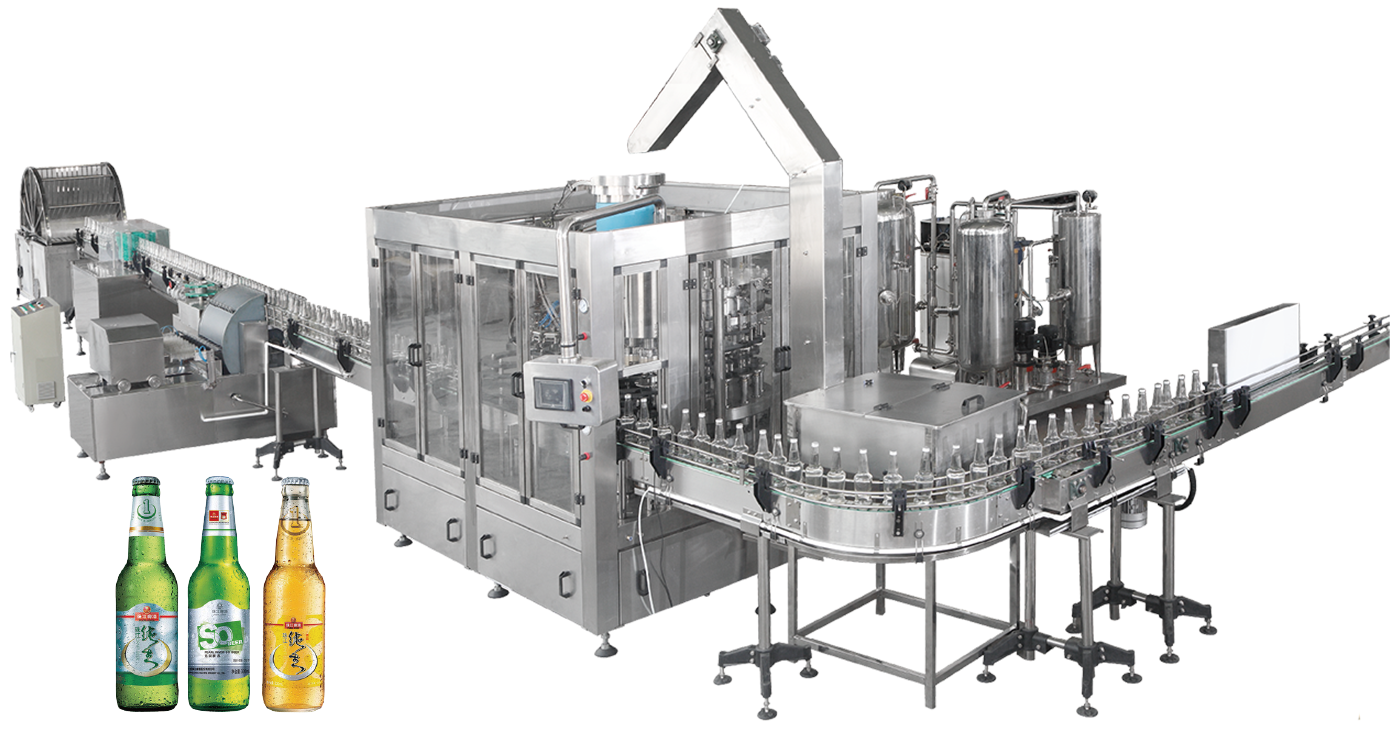

Beer filling production line
Beer production line is suitable for a variety of bottle types, include: PET bottle beer filling machine, glass bottle beer bottling line, beer canning line. The beer filling equipment, beer brewing machine, labeling machine labeling machine, film packaging machine, carton packing machine and palletizer form complete beer filling line. First choice for small and medium-sized beer manufacturers.
|
Model |
BDGZ8-6-1 |
BDGZ14-12-4 |
BDGZ18-18-6 |
BDGZ24-24-8 |
BDGZ32-32-10 |
BDGZ40-40-12 |
BDGZ50-50-15 |
BDGZ60-60-15 |
BDGZ72-72-18 |
|
Rinsing heads |
8 |
14 |
18 |
24 |
32 |
40 |
50 |
60 |
72 |
|
Filling heads |
8 |
14 |
18 |
24 |
32 |
40 |
50 |
60 |
72 |
|
Capping heads |
1 |
4 |
6 |
8 |
10 |
12 |
15 |
15 |
18 |
|
Capacity(BPH) |
500 |
1200 |
1800 |
3000 |
6000 |
10000 |
13000 |
15000 |
20000 |
|
Motor power(KW) |
1.1 |
4.3 |
4.5 |
6 |
9 |
11 |
15 |
21 |
24 |
|
Dimension(mm) |
1800*1280*2550 |
2000*1740*2750 |
2370*1890*2750 |
2760*2800*2850 |
4060*2285*2850 |
4020*3110*2850 |
5460*3300*2950 |
5556*4239*2950 |
6375*4820*3050 |
|
Weight(kg) |
1200 |
2300 |
3500 |
5100 |
7300 |
9600 |
12500 |
16200 |
19700 |

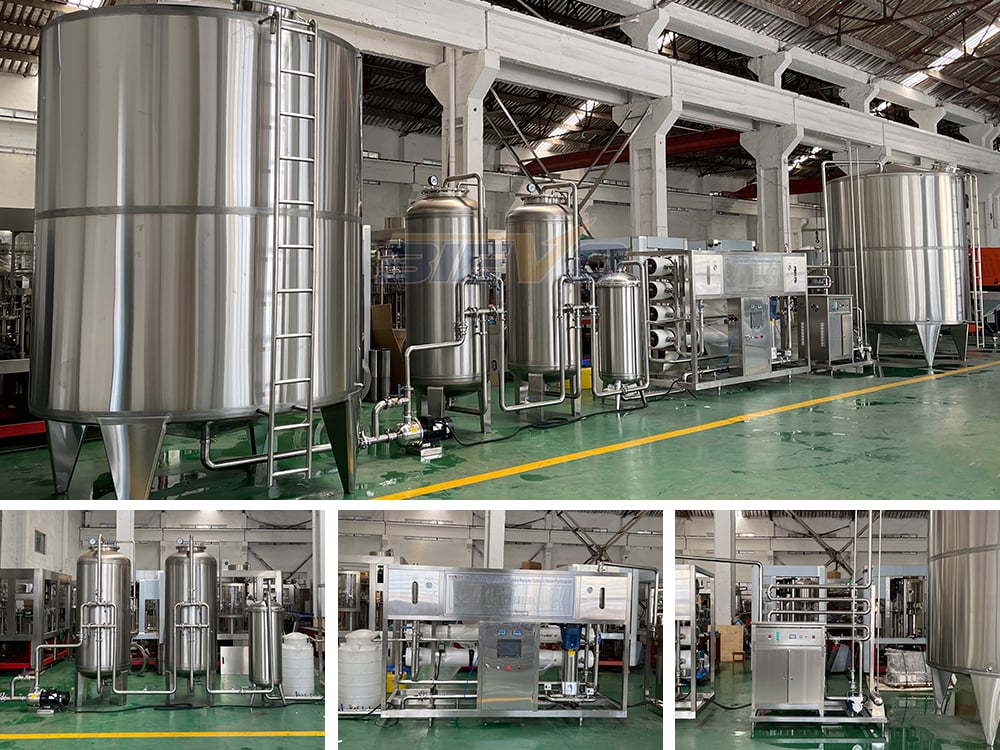

（1）Water treatment system
Water treatment system is suitable for all kinds of water treatment equipment of pure water, mineral water, drinking water, beverage product water and process water. Water Treatment System Components:
1. Reverse osmosis (RO) equipment series
2. Filter equipment series
3. Membrane products and filter elements
4. Electrodialysis, ion exchanger, ozone sterilization system

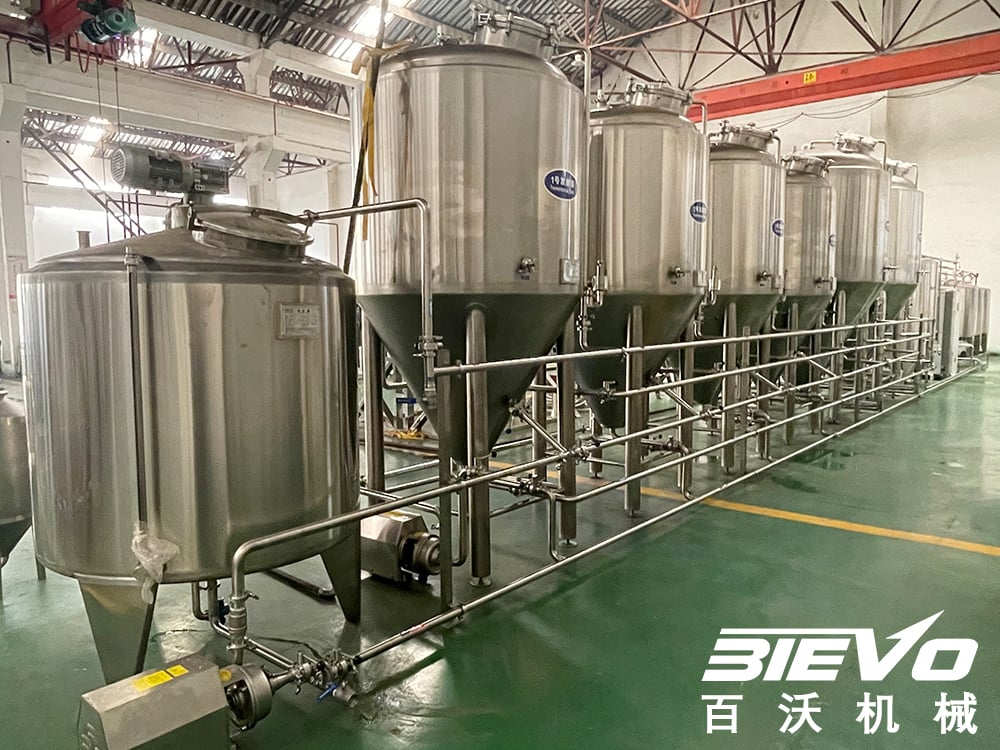

（2）Beer Brewing Machine
Beer brewing machine is widely used in brewery factory. Beer brewing machine can brew beer at proper temperature with different raw material.

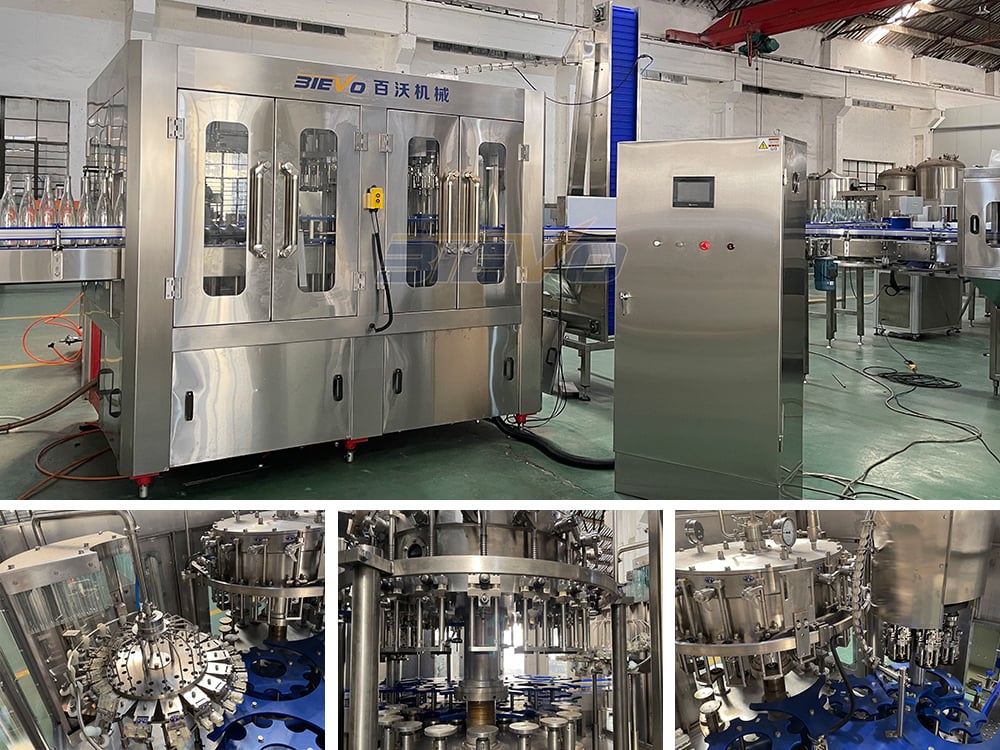

（3）Filling Machine
BIEVO Machinery has developed a variety of beer bottling machine and line, provides small and medium-sized beer filler factories with pre-sales and after-sales service.

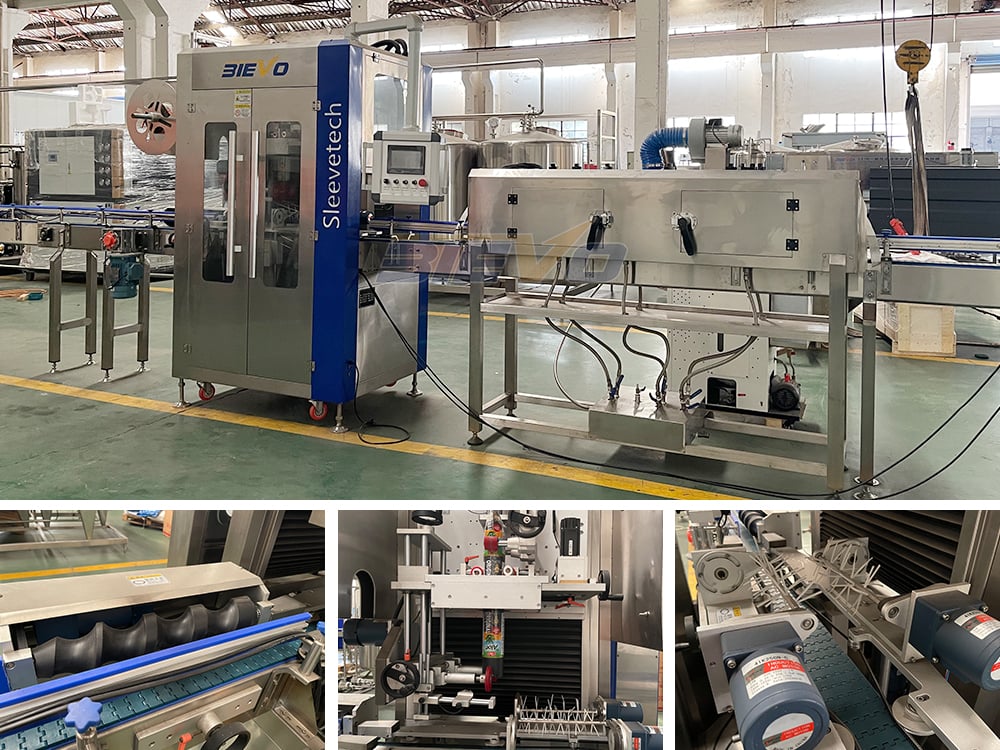

（4）Labeling Machine & Sleeve Labeling Machine
The automatic labeling machineare divided into self-adhesive labeling machine, hot melt glue labeling machine, sleeve labeling machine. The labeling equipment is suitable for various bottle type juice filling, tea beverage filling, dairy filling, pure water filling, condiment filling, beer filling, sports beverage filling and other food and beverage industries.

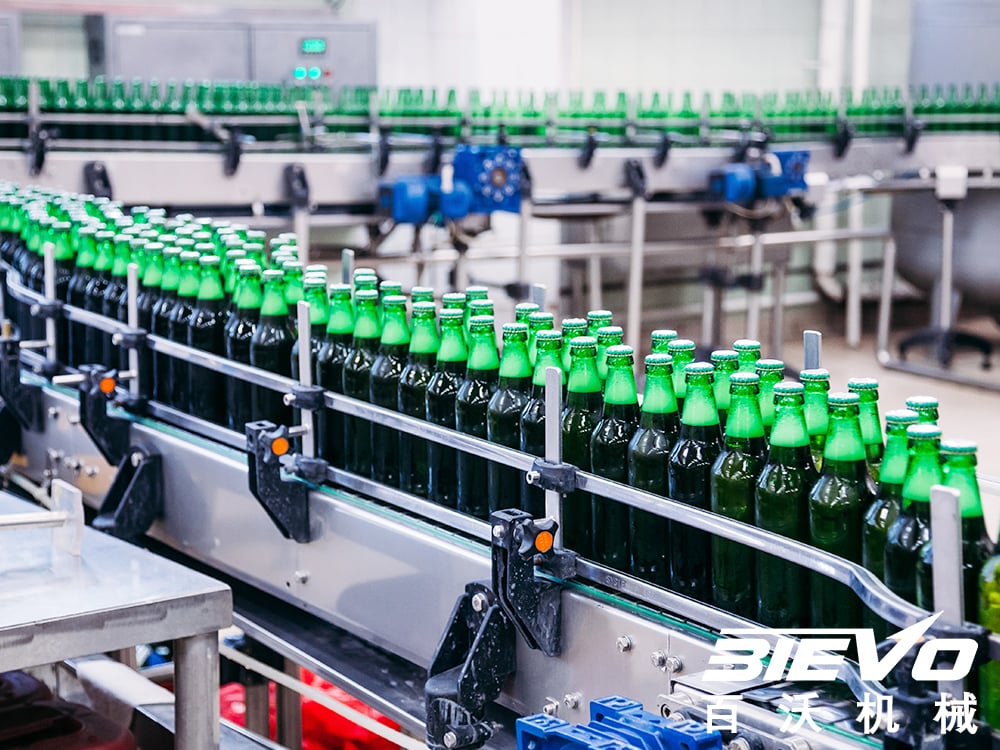

（5）Flat Conveyor
The flat conveyor is an integral component of the filling line. With its stable, reliable, and efficient performance, it ensures the seamless circulation of bottles between various processing stages. It can be customized to fit the layout of the client's factory.

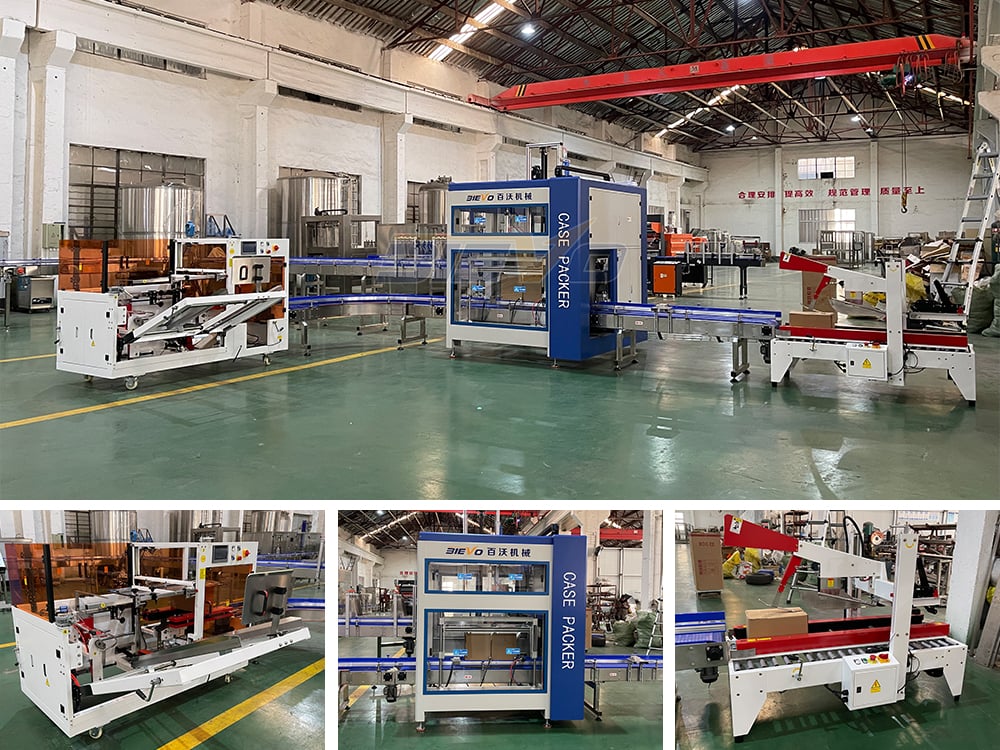

（6）Packing Sysyem
The automatic packaging machine is developed especially for mineral water, beverage, wine, beer, product and so on infusion medicine bottle combination packaging, with stable function, and the packed articles tight and orderly.
1. Shrink Film Packing Machine
2. Lineal Type PE Film Shrink Wrapper
3. High-speed Wrapping Machine
4. Carton Opening Packing Sealing System

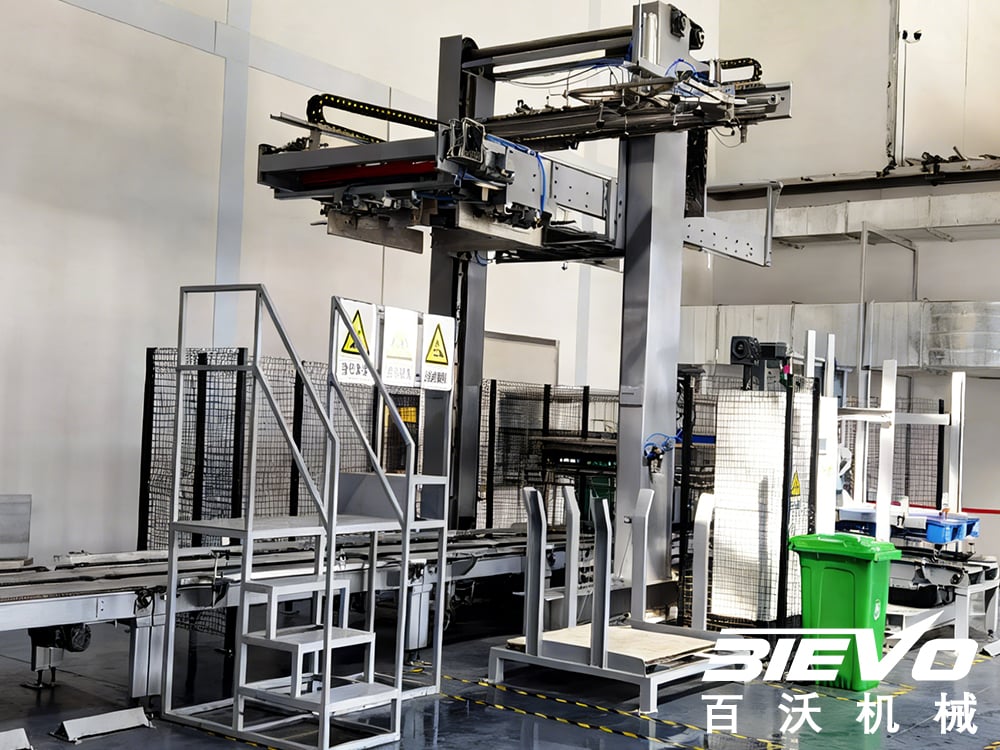

（7）Palletizer Machine
Palletizer machine is widely used in beverage, dairy, food, beer, petrochemical, medicine, etc., can satisfy different packaging production line of all kinds of product palletizing requirements. There are a large number of professional R&D designers who provide reasonable robot palletizing project for customers. The turnkey palletizing solution contains production input, pallet output, robot choosing and hand holding design.
