Water Filling Production Line

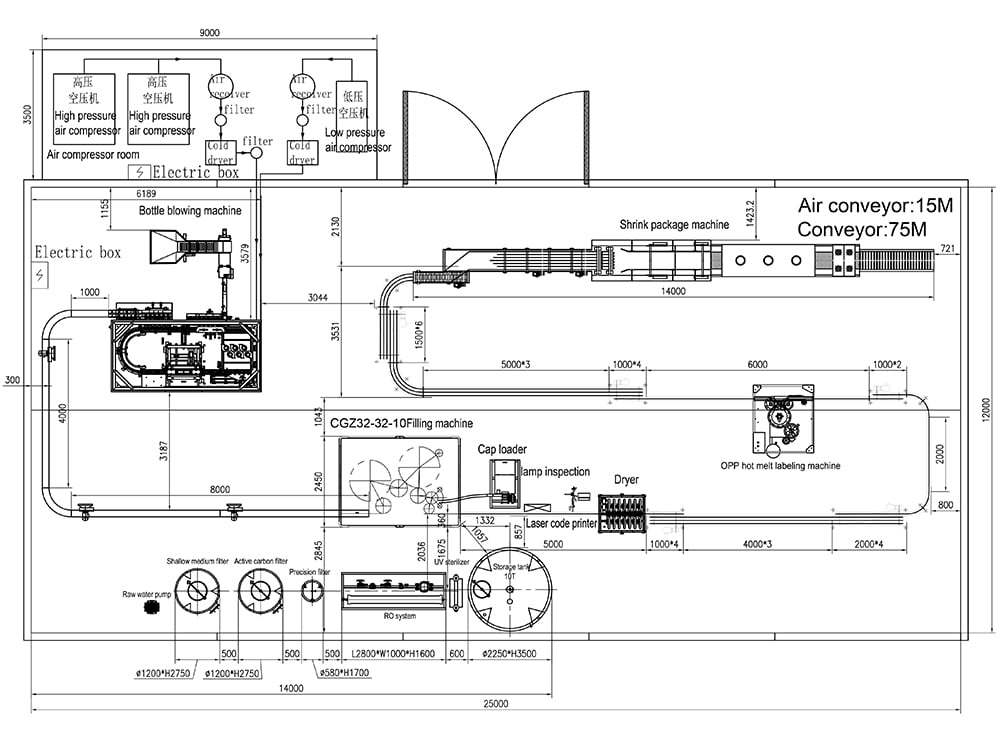

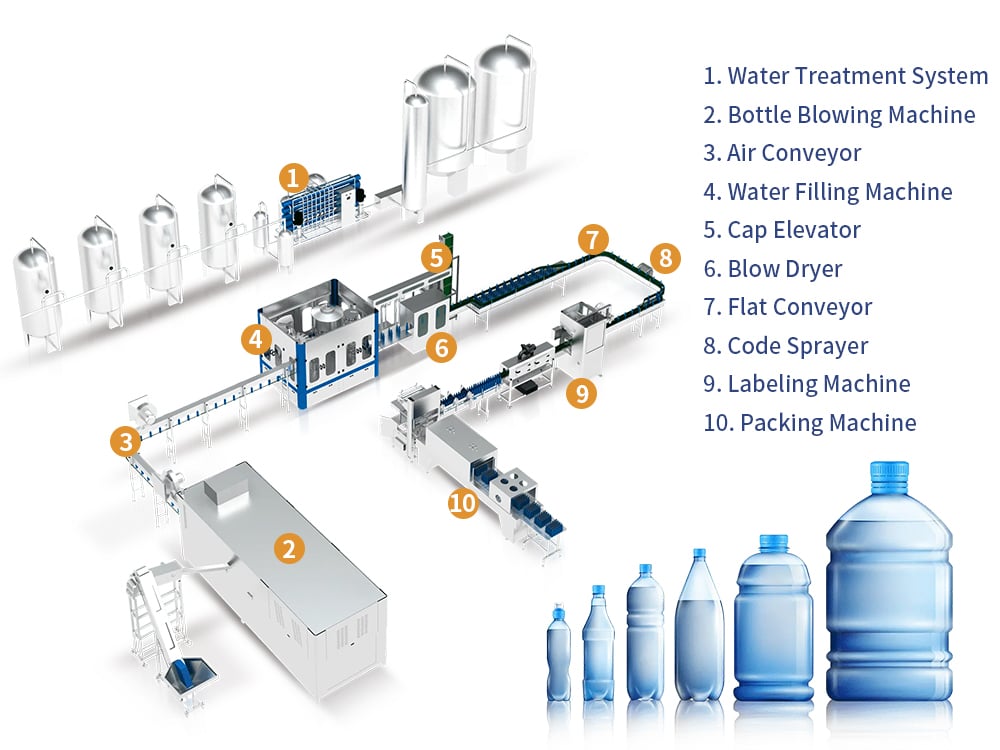

Complete water production line includes: water treatment equipment, PET bottle blow molding machine, water filling machine, labeling machine, film packaging machine, carton packing machine, palletizer etc. Provide water production lines of different specifications for small and medium-sized factories.
|
Model |
CGF12-12-6 |
CGF18-18-6 |
CGF24-24-8 |
CGF32-32-8 |
CGF40-40-10 |
CGF50-50-12 |
CGF60-60-15 |
|
Production Capacity:500ml(B/H) |
2000-4000 |
5000-6000 |
8000-12000 |
12000-15000 |
16000-20000 |
20000-24000 |
25000-28000 |
|
Filling precision |
≤±2mm |
||||||
|
Suitable bottle |
Round or square shaped bottle |
||||||
|
PET Bottle |
Bottle Diameter:φ50~φ100 Bottle Height:150mm~320mm Volume:330-1500ml |
||||||
|
Suitable Cap Standard |
Plastic Screw Cap |
||||||
|
Gas Source Pressure(MPa) |
0.6 |
||||||
|
Gas Consumption(m3/min) |
0.4 |
0.4 |
0.6 |
0.6 |
0.6 |
0.8 |
0.8 |
|
Total Power(Kw) |
4.6 |
4.6 |
6.4 |
7 |
11 |
12 |
15 |
|
Overall Dimensions(L*W*H)(mm) |
2450*1650 *2100 |
2600*1800 *2100 |
3000*2200 *2400 |
4000*2220 *2400 |
4100*2700 *2600 |
4500*3400 *2600 |
5400*4100 *2600 |
|
Total Weight(Kg) |
2500 |
3300 |
480 |
6000 |
8000 |
9500 |
12300 |

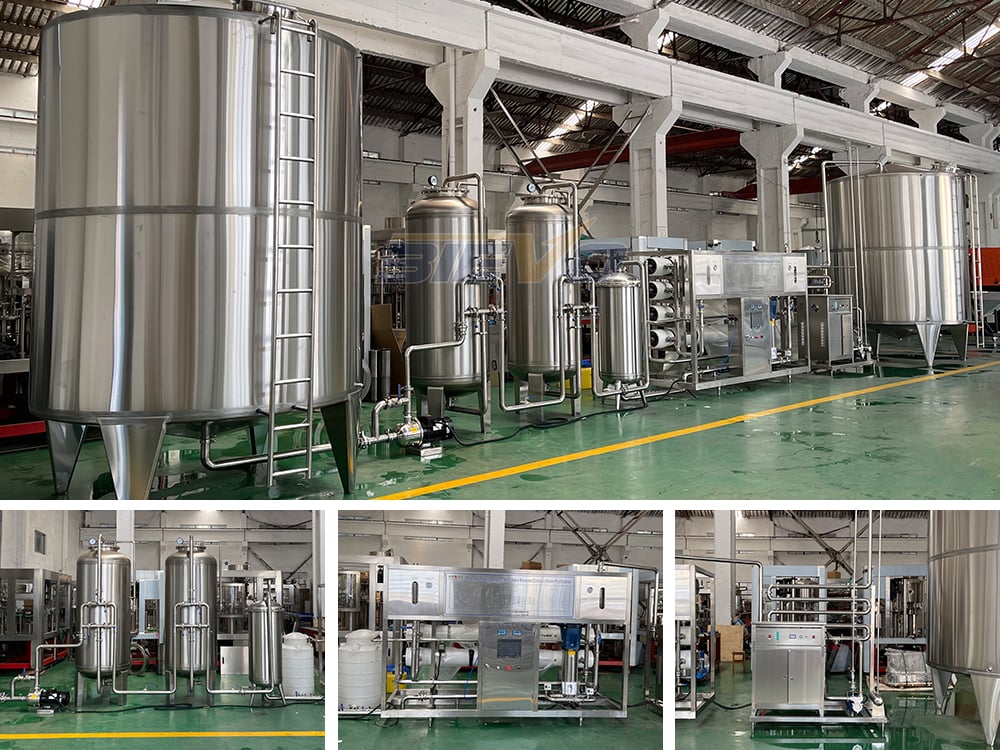

（1）Water treatment system
Water treatment system is suitable for all kinds of water treatment equipment of pure water, mineral water, drinking water, beverage product water and process water. Water Treatment System Components:
1. Reverse osmosis (RO) equipment series
2. Filter equipment series
3. Membrane products and filter elements
4. Electrodialysis, ion exchanger, ozone sterilization system

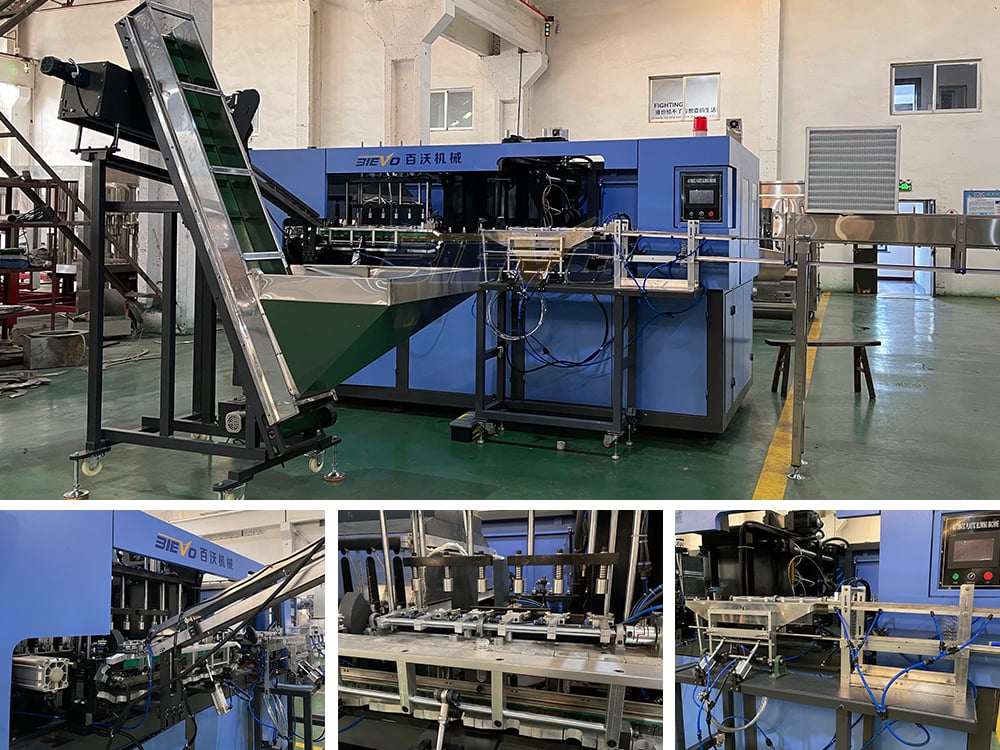

（2）PET Bottle Blow Molding Machine
The full automatic blowing machine is suitable for blowing various plastic containers and beverage bottles made of PET. Full automatic blowing machine is used in blowing various juice beverage bottles, carbonated beverage bottles, mineral water, pure water bottles, condiment bottles, oil bottles etc.

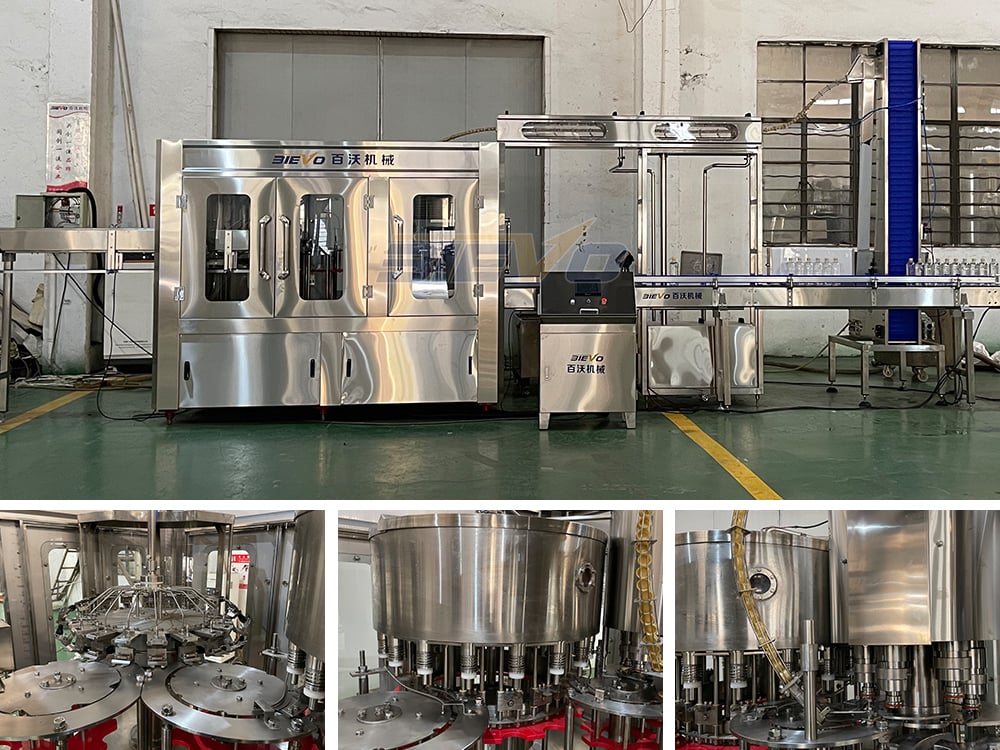

（3）Filling Machine
This water filling machine is mainly used for filling mineral water, drinking water, pure water. The water filling machine combines washing, filling and capping as one automatic body. The micro pressure filling operation of the new type is adopted enabling it to fill more efficiently and more stably with more output than the filling machine of the same level from others.

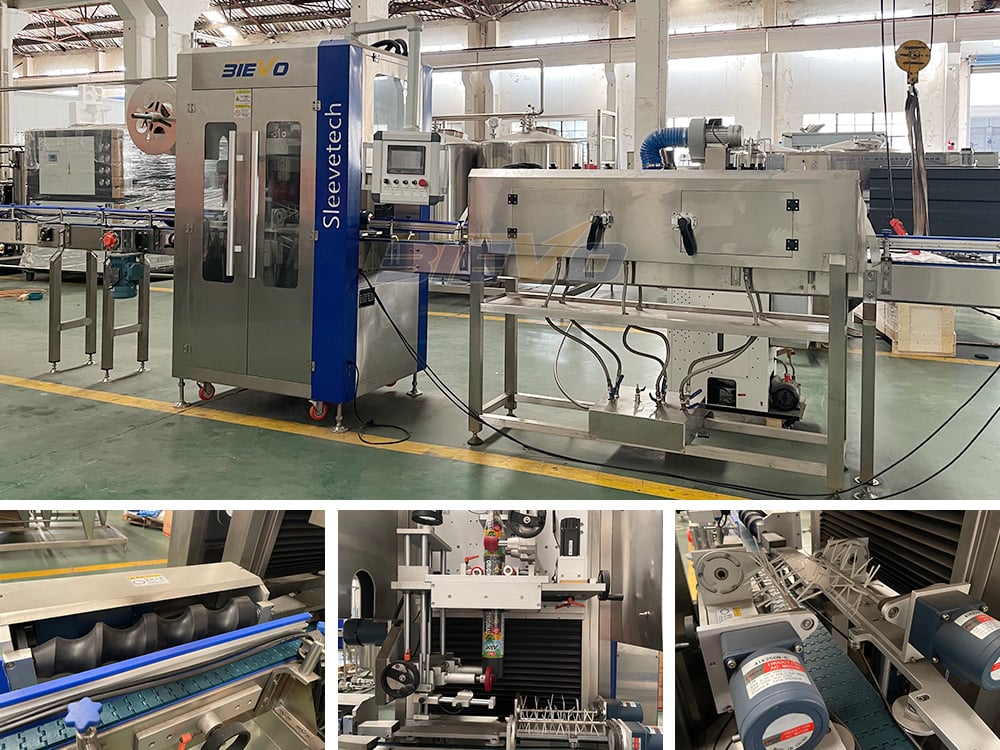

（4）Labeling Machine & Sleeve Labeling Machine
The automatic labeling machineare divided into self-adhesive labeling machine, hot melt glue labeling machine, sleeve labeling machine. The labeling equipment is suitable for various bottle type juice filling, tea beverage filling, dairy filling, pure water filling, condiment filling, beer filling, sports beverage filling and other food and beverage industries.

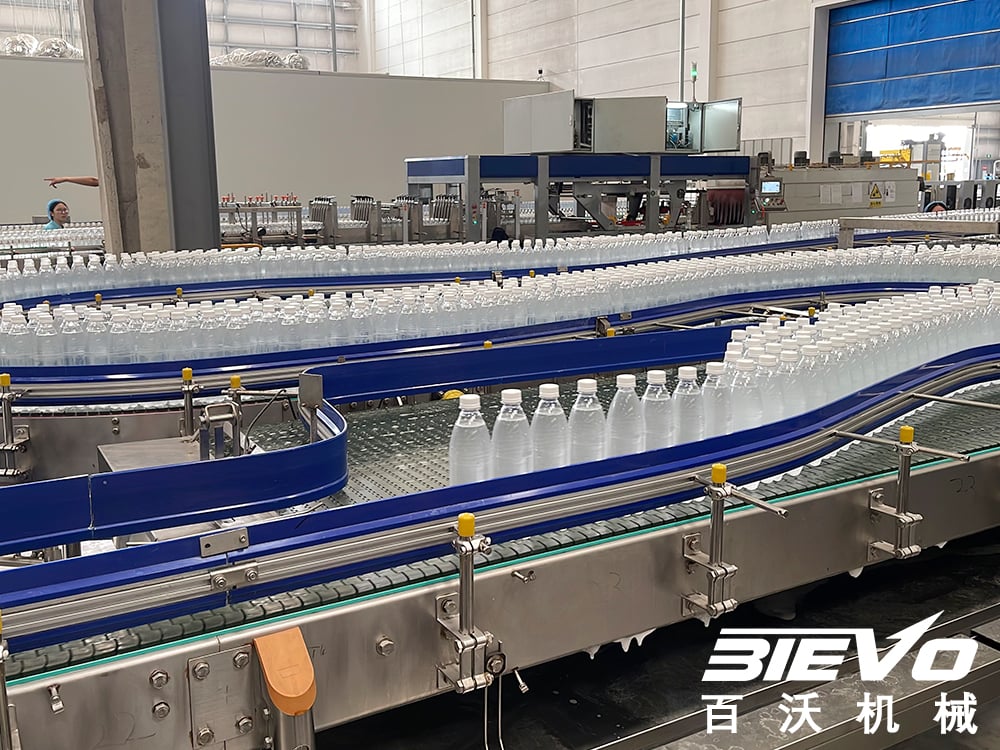

（5）Flat Conveyor
The flat conveyor is an integral component of the filling line. With its stable, reliable, and efficient performance, it ensures the seamless circulation of bottles between various processing stages. It can be customized to fit the layout of the client's factory.

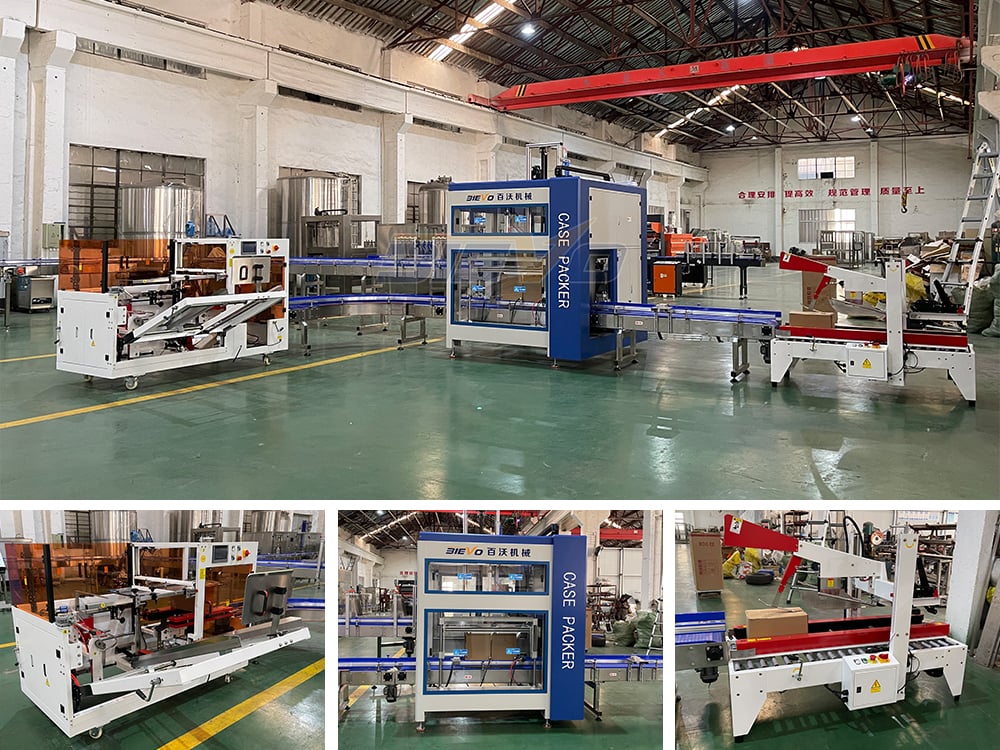

（6）Packing Sysyem
The automatic packaging machine is developed especially for mineral water, beverage, wine, beer, product and so on infusion medicine bottle combination packaging, with stable function, and the packed articles tight and orderly.
1. Shrink Film Packing Machine
2. Lineal Type PE Film Shrink Wrapper
3. High-speed Wrapping Machine
4. Carton Opening Packing Sealing System
