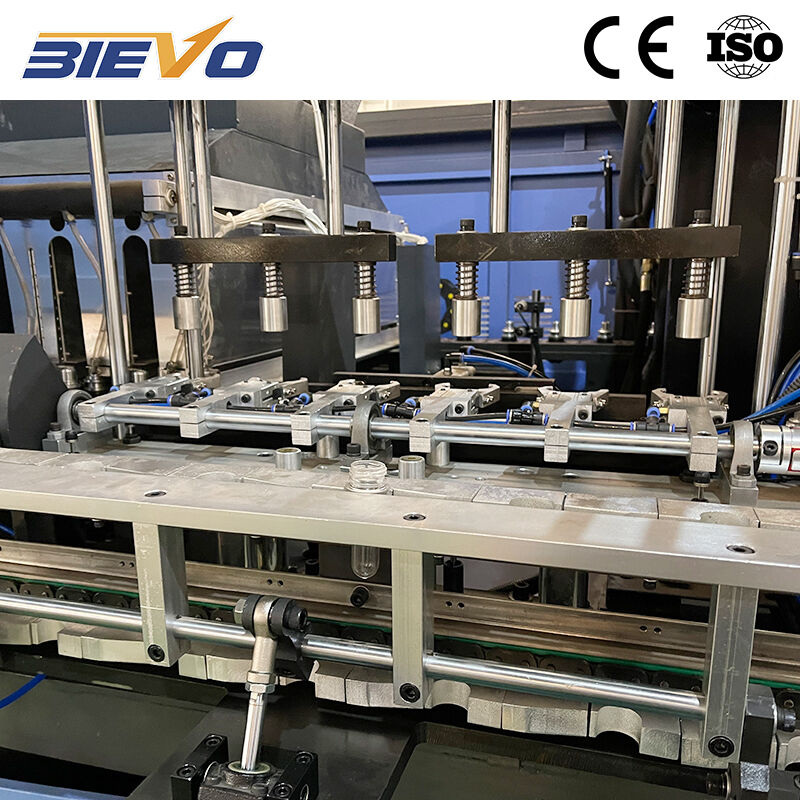

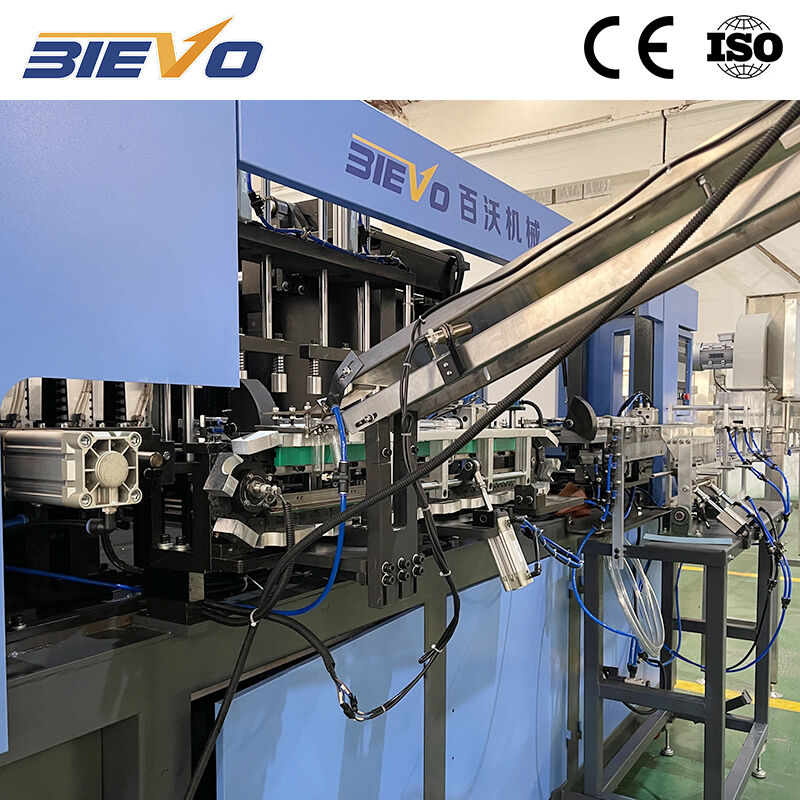

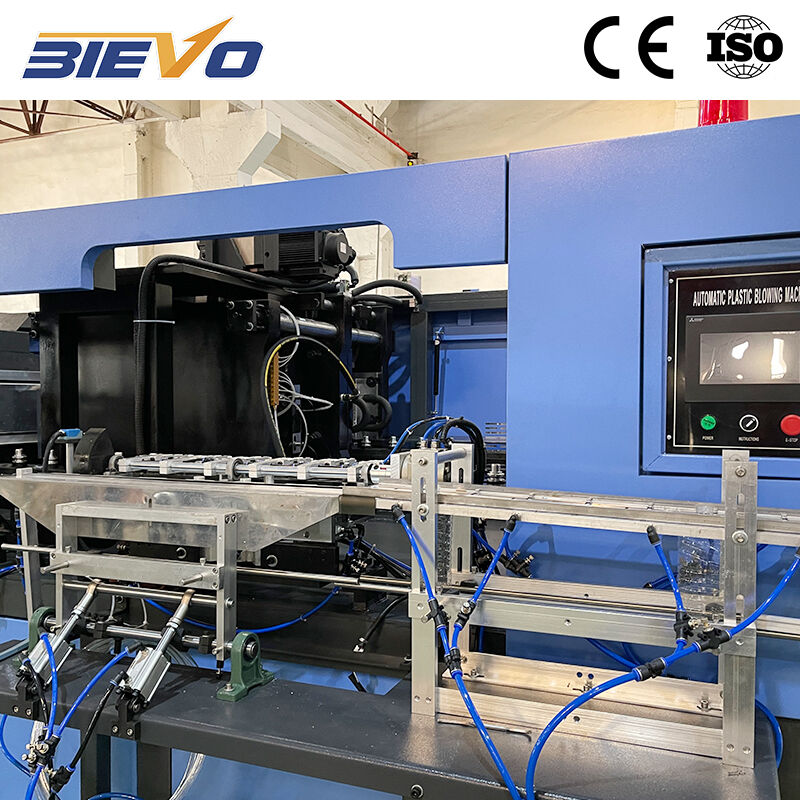

Automatic bottle blowing machine
BV series blow moldingmachine is widely used inthe production of mineralwater bottles, beveragebottles, pesticide bottles, oilbottles, cosmetics bottles,wide mouth bottles and hotfilling bottles. Use microcomputer touch screen controls and adjust the temperature, making temperature adjustment of blow molding different bottle types simple. The servo transmission system, has high positioning accuracy, fast speed, good stability and reliability, no need air source, energy saving, and low maintenance cost.
- Overview
- Recommended Products
Overview
BV series blow moldingmachine is widely used inthe production of mineralwater bottles, beveragebottles, pesticide bottles, oilbottles, cosmetics bottles,wide mouth bottles and hotfilling bottles. Use microcomputer touch screen controls and adjust the temperature, making temperature adjustment of blow molding different bottle types simple. The servo transmission system, has high positioning accuracy, fast speed, good stability and reliability, no need air source, energy saving, and low maintenance cost.
Parameter
Item |
BV-880B |
BV-4S |
BV-6S |
BV-TP5N |
BV-CP7 |
BV-L10E |
|
Theoretical output |
2500 |
4000 |
6000 |
8000 |
12000 |
16000 |
|
Number of cavity |
3 |
4 |
6 |
5 |
7 |
10 |
|
Bottle specification |
Max bottle size(L) |
2 |
2 |
2 |
1.5 |
1.5 |
0.6 |
Max height(mm) |
360 |
360 |
360 |
350 |
350 |
260 |
|
Max diameter(mm) |
105 |
105 |
105 |
95 |
95 |
70 |
|
Air system |
Operation air pressure(Mpa) |
0.7 |
0.7 |
0.7 |
0.7 |
0.7 |
0.7 |
Action air consumption(m³/min) |
1 |
1.6 |
1.6 |
1 |
1 |
0.5 |
|
Blowing air consumption(Mpa) |
3 |
3 |
3 |
3.5 |
3.5 |
3.5 |
|
Blowing air pressure(m³/min) |
2.4 |
3.2 |
4.8 |
8.5 |
10 |
12 |
|
Electrical |
Heating power(KW) |
15 |
22 |
32 |
45 |
80 |
102 |
Total power(KW) |
18 |
25 |
35 |
54 |
98 |
118 |
|
Machine |
Main dimension(m) |
2×1.45 ×2.5 |
3.4× 1.9×2.0 |
4.4 ×1.9×2.0 |
4× 1.3×2.3 |
5.2× 1.5×2.3 |
6.7x 2x2.5 |
Main Weight(Kg) |
1500 |
2600 |
3200 |
4300 |
5600 |
9000 |
|
