Canned carbonated beverage filling machine
DFG series of can filling and sealing monoblock machine is specially applicable for filling & sealing carbonated drink, soda and beer into can. Filling and sealing is the overall designed, power system by filling sealing system to ensure that both the absolute synchronization and coordination. The can filling machine can equip long-distance control system according to the customers' request. Provide all-round can filling line solutions for domestic and foreign customers.
- Overview
- Recommended Products
Overview
DFG series of can filling and sealing monoblock machine is specially applicable for filling & sealing carbonated drink, soda and beer into can. Filling and sealing is the overall designed, power system by filling sealing system to ensure that both the absolute synchronization and coordination. The can filling machine can equip long-distance control system according to the customers' request. Provide all-round can filling line solutions for domestic and foreign customers.
Applicable Products: coke, sprite, soda and other soft drinks.
Suitable Container: can of various capacities
Filling Mode: Isobaric filling
Production Capacity: 2000-8000BPH
Parameter
Model |
DFG12-1 |
DFG18-4 |
DFG32-6 |
Production capacity(bph)(500ml) |
2000-3000 |
4000-6000 |
6000-8000 |
Suitable can height/diameter |
Can diameter:φ53.5-φ80mm;Height:65-160mm |
||
Total power(kw) |
4 |
5.5 |
6.5 |
Total weight(kg) |
2500 |
3300 |
4800 |
Dimension(L*W*H)(mm) |
1800*1500*2100 |
2100*1500*2100 |
2600*2200*2100 |
Feature
Stable Bottle-Neck Clamping: The suspending bottle-neck clamping design make the bottle stable during the high-speed moving conditions. By changing a few parts, it can meet the need of production of different types of bottles easily.
Stainless Steel Grab: The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle’s screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.
Fast & Stable Gravity Filling: The advanced gravity filling technology used in this machine makes the filling quick, steady and accurate.

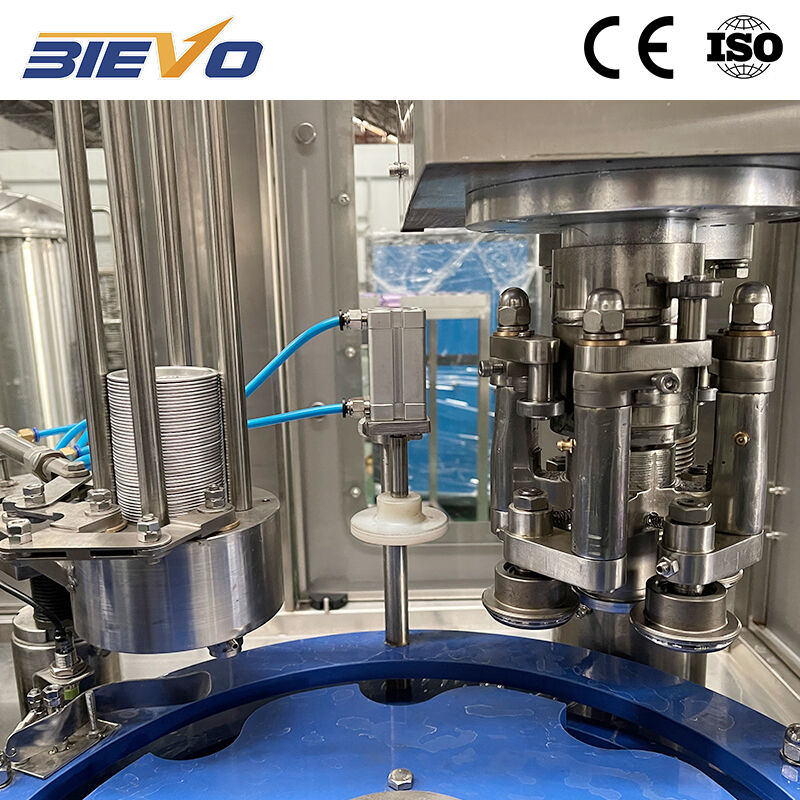

Magnetic Torque Capping: Magnetic torque is used for screw capping, and the power of screw capping can be adjusted steplessly.Capping is reliable and do no harm to the caps.
Smart Control System: Advanced technologies, such as human-machine interface touch-screen and PLC program control are adopted in this machine.
Premium Materials & Components: All parts that have direct contact with the water are made of high quality stainless steel. The critical electricat components are from famous international companies,such as Mitsubishi, Omron to name a few.
