Glass bottle beer filling machine
Glass bottle beer filling machine is mainly used for the production of various types of beer, cocktails, gas-containing beverages, etc. Beer bottling machine is a three-in-one filling production line, which realizes bottle washing, filling and capping on one machine.
- Overview
- Recommended Products
Overview

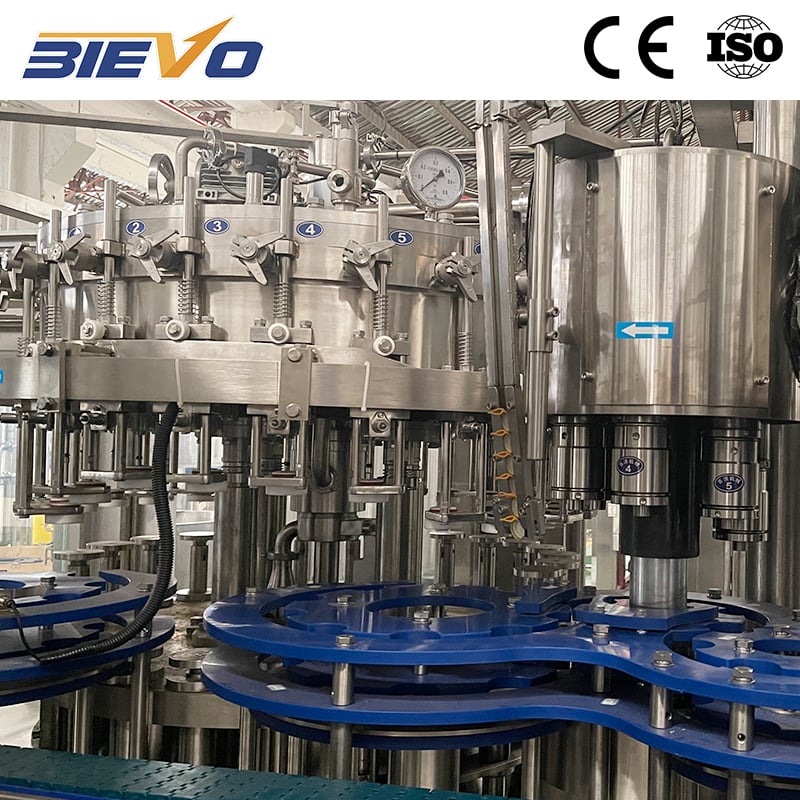

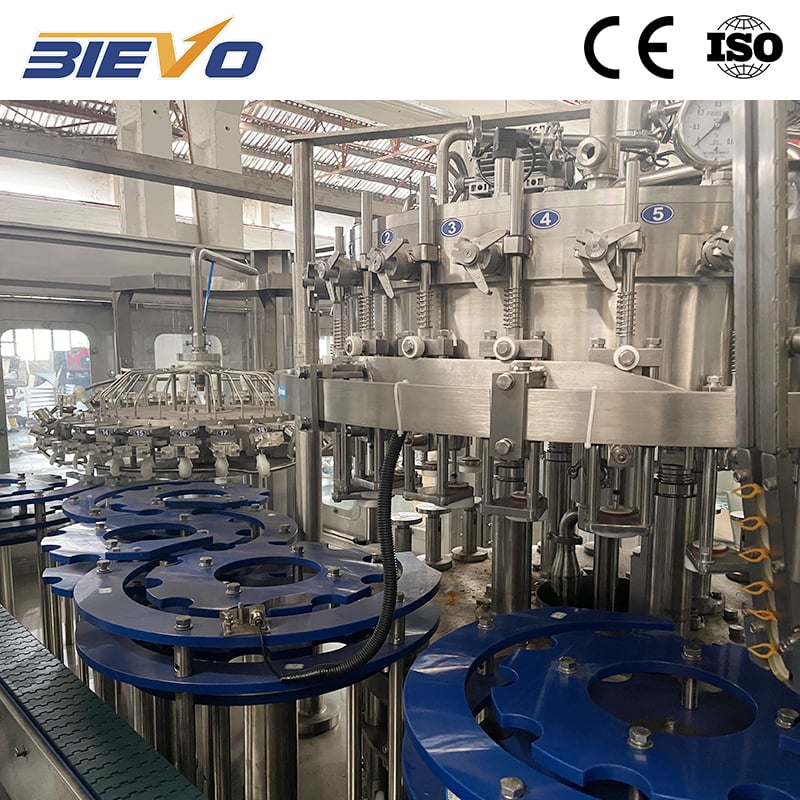

Glass bottle beer filling machine is mainly used for the production of various types of beer, cocktails, gas-containing beverages, etc. Beer bottling machine is a three-in-one filling production line, which realizes bottle washing, filling and capping on one machine.
The beer filling machine adopts a PCL programmable controller, which realizes the automatic control from the bottle entering the machine to the completion of the packaging. The frequency conversion speed control is adopted, which is easy for users to adjust and adjust, and meets the requirements of different processes for production capacity.
Applicable Products: beer, cocktails, gas-containing beverages, etc.
Suitable Container: glass bottles of various shapes and capacities
Filling Mode: Isobaric filling
Production Capacity: 500-20000BPH
Parameter
Model |
BDGZ8-6-1 |
BDGZ14-12-4 |
BDGZ18-18-6 |
BDGZ24-24-8 |
BDGZ32-32-10 |
BDGZ40-40-12 |
BDGZ50-50-15 |
BDGZ60-60-15 |
BDGZ72-72-18 |
Rinsing heads |
8 |
14 |
18 |
24 |
32 |
40 |
50 |
60 |
72 |
Filling heads |
8 |
14 |
18 |
24 |
32 |
40 |
50 |
60 |
72 |
Capping heads |
1 |
4 |
6 |
8 |
10 |
12 |
15 |
15 |
18 |
Capacity(BPH) |
500 |
1200 |
1800 |
3000 |
6000 |
10000 |
13000 |
15000 |
20000 |
Motor power(KW) |
1.1 |
4.3 |
4.5 |
6 |
9 |
11 |
15 |
21 |
24 |
Dimension(mm) |
1800*1280*2550 |
2000*1740*2750 |
2370*1890*2750 |
2760*2800*2850 |
4060*2285*2850 |
4020*3110*2850 |
5460*3300*2950 |
5556*4239*2950 |
6375*4820*3050 |
Weight(kg) |
1200 |
2300 |
3500 |
5100 |
7300 |
9600 |
12500 |
16200 |
19700 |
Feature
Stable Bottle-Neck Clamping: The suspending bottle-neck clamping design make the bottle stable during the high-speed moving conditions. By changing a few parts, it can meet the need of production of different types of bottles easily.

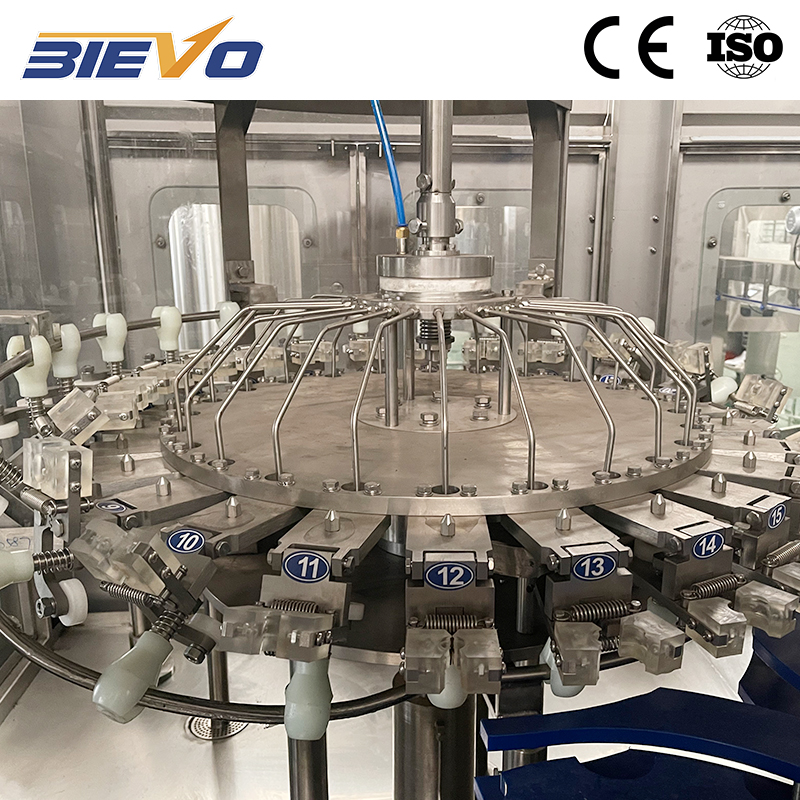

Stainless Steel Grab: The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle’s screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.

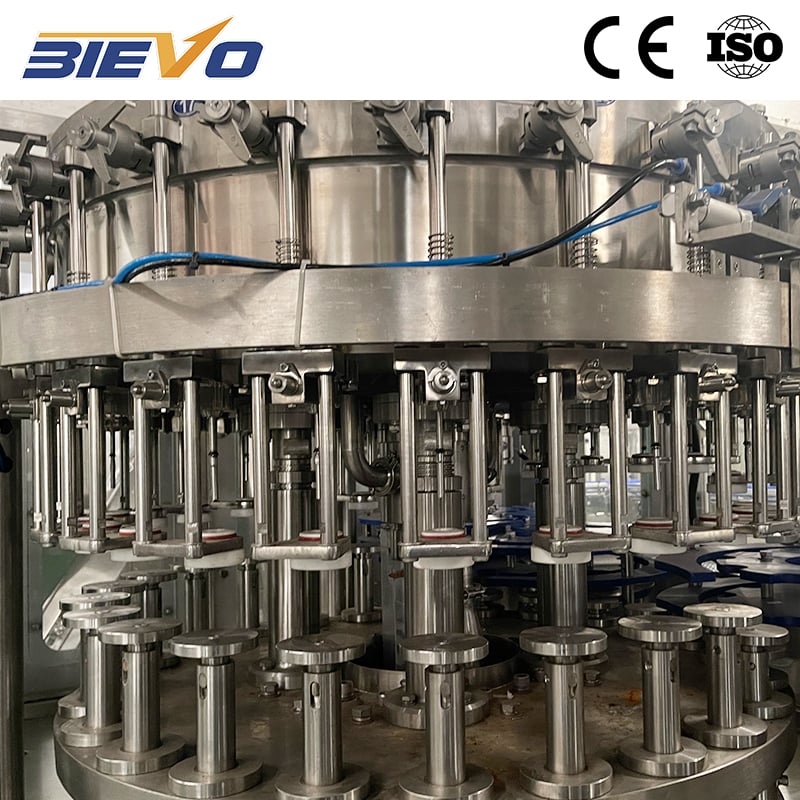

Fast & Stable Gravity Filling: The advanced gravity filling technology used in this machine makes the filling quick, steady and accurate.
Magnetic Torque Capping: Magnetic torque is used for screw capping, and the power of screw capping can be adjusted steplessly.Capping is reliable and do no harm to the caps.
Smart Control System: Advanced technologies, such as human-machine interface touch-screen and PLC program control are adopted in this machine.
Premium Materials & Components: All parts that have direct contact with the water are made of high quality stainless steel. The critical electricat components are from famous international companies,such as Mitsubishi, Omron to name a few.
