PET bottle beer filling machine
PET bottle beer filling machine is made of structural steel body, made of 304 stainless steel, and the feet can be adjusted. The efficient filling system of the beer filling machine has advanced automatic control and protection devices.
- Overview
- Recommended Products
Overview
PET bottle beer filling machine is made of structural steel body, made of 304 stainless steel, and the feet can be adjusted. The efficient filling system of the beer filling machine has advanced automatic control and protection devices.

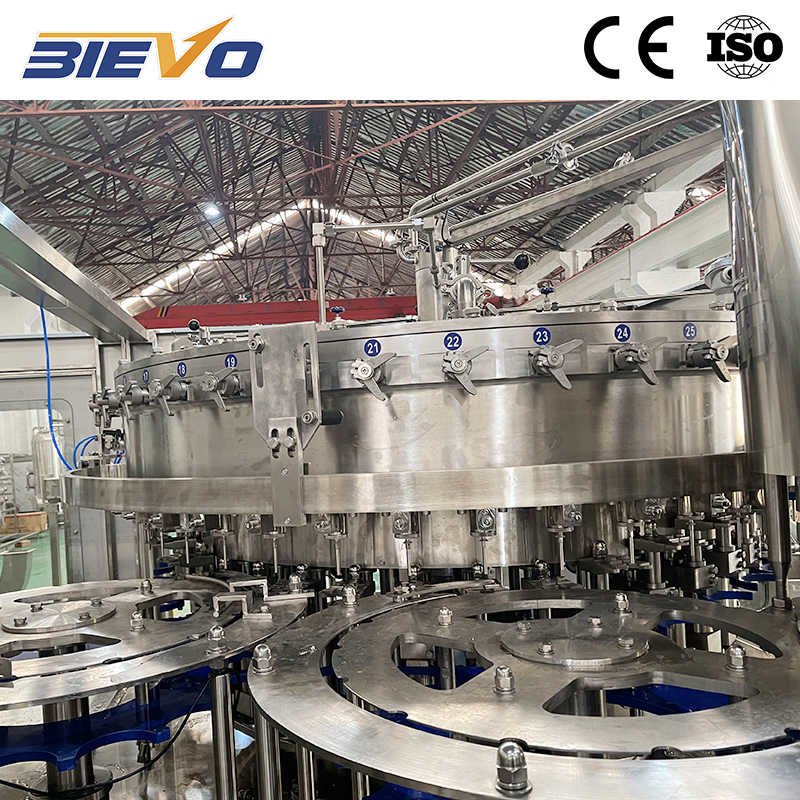

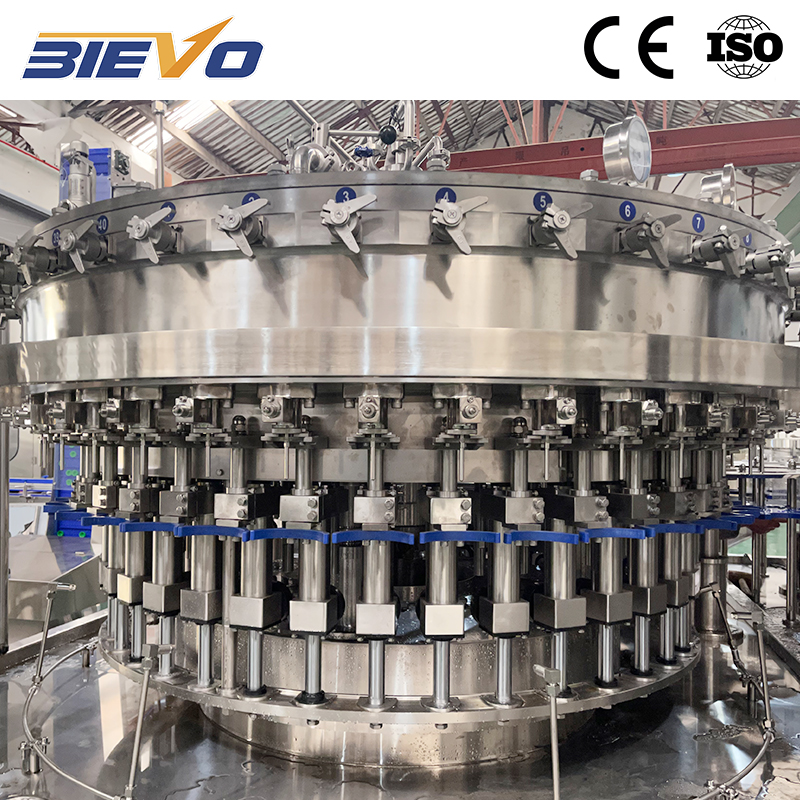

PET bottle beer filling line adopts bottle neck holding transmission technology to realize fully automatic rinsing,filling and capping. The beer filling machine is equipped with CO2 accuracy pressure control,so that the liquid level is always stable.
Applicable Products: beer, cocktails, gas-containing beverages, etc.
Suitable Container: PET bottles of various shapes and capacities
Filling Mode: Isobaric filling
Production Capacity: 2000-22000BPH
Parameter
Model |
DGZ12-12-6 |
DGZ18-18-6 |
DGZ24-24-8 |
DGZ32-32-8 |
DGZ40-40-10 |
DGZ50-50-12 |
DGZ60-60-15 |
Capacity(bph)(mm) |
2000-3000 |
3000-5000 |
6000-8000 |
8000-11000 |
12000-15000 |
15000-18000 |
18000-22000 |
Filling pressure(Mpa) |
≤0.4 |
||||||
Applicable cap shape |
Plastic screw cap |
||||||
Applicable bottle type |
Bottle diameter:50-100mm Height:150-320mm Volume:330-1500ml |
||||||
Gas source pressure(Amp) |
0.6 |
||||||
Gas consumption(m3/min) |
0.4 |
0.4 |
0.6 |
0.6 |
0.6 |
0.8 |
0.8 |
Total power(kw) |
4.6 |
5.4 |
6.4 |
8.5 |
11 |
12 |
15 |
Weight(kg) |
2600 |
3500 |
5200 |
6500 |
8000 |
10000 |
12800 |
Dimension(L*W*H)(mm) |
2450*1650*2100 |
2600*1800*2100 |
3000*2200*2400 |
4000*2220*2400 |
4100*2700*2600 |
4500*3400*2600 |
5400*4100*2600 |
Feature
Stable Bottle-Neck Clamping: The suspending bottle-neck clamping design make the bottle stable during the high-speed moving conditions. By changing a few parts, it can meet the need of production of different types of bottles easily.

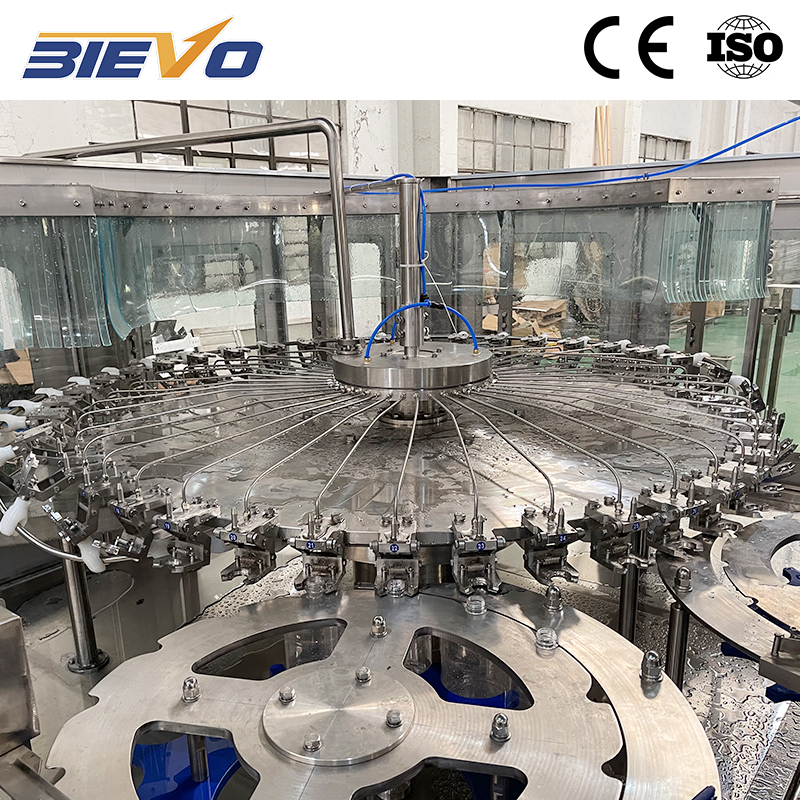

Stainless Steel Grab: The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle’s screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.
Fast & Stable Gravity Filling: The advanced gravity filling technology used in this machine makes the filling quick, steady and accurate.

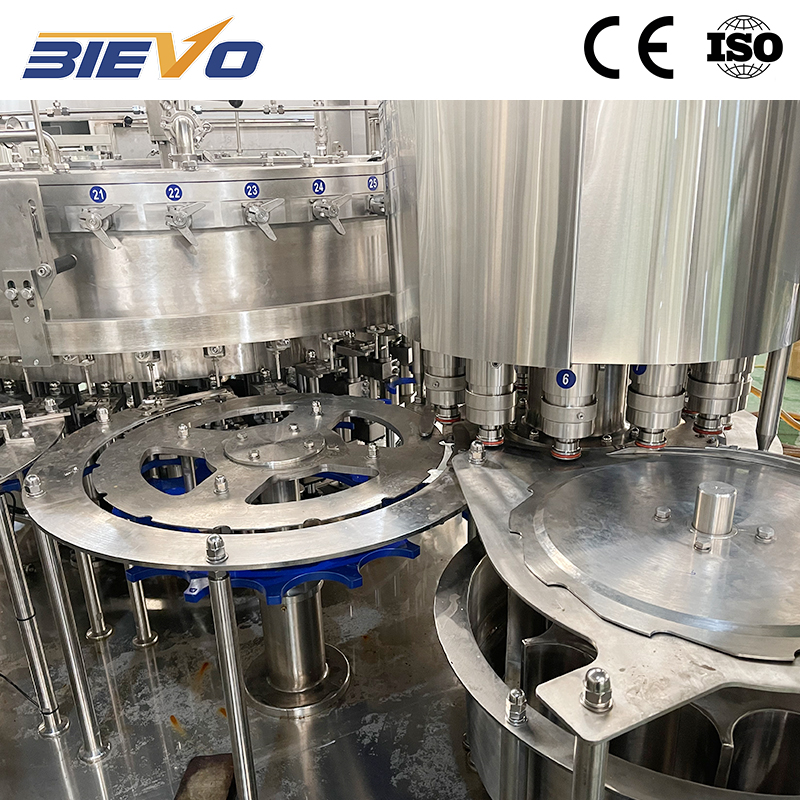

Magnetic Torque Capping: Magnetic torque is used for screw capping, and the power of screw capping can be adjusted steplessly.Capping is reliable and do no harm to the caps.
Smart Control System: Advanced technologies, such as human-machine interface touch-screen and PLC program control are adopted in this machine.
Premium Materials & Components: All parts that have direct contact with the water are made of high quality stainless steel. The critical electricat components are from famous international companies,such as Mitsubishi, Omron to name a few.
