Glass bottle carbonated beverage filling machine
Glass bottle carbonated beverage production line is suitable for glass bottled carbonated drinks, soda water, cola, and sprite. According to the output size, the production capacity of the carbonated drink filling line ranges from 500 bottles/hour to 20,000 bottles/hour. The carbonated beverage filling machine is equipped with many protection and alarm devices such as card bottle, missing bottle, missing cover and overload to ensure the production quality.
- Overview
- Recommended Products
Overview
Glass bottle carbonated beverage production line is suitable for glass bottled carbonated drinks, soda water, cola, and sprite. According to the output size, the production capacity of the carbonated drink filling line ranges from 500 bottles/hour to 20,000 bottles/hour. The carbonated beverage filling machine is equipped with many protection and alarm devices such as card bottle, missing bottle, missing cover and overload to ensure the production quality.
Applicable Products: coke, sprite, soda and other soft drinks.
Suitable Container: glass bottles of various shapes and capacities
Filling Mode: Isobaric filling
Production Capacity: 500-20000BPH
Parameter
Model |
BDGZ8-6-1 |
BDGZ14-12-4 |
BDGZ18-18-6 |
BDGZ24-24-8 |
BDGZ32-32-10 |
BDGZ40-40-12 |
BDGZ50-50-15 |
BDGZ60-60-15 |
BDGZ72-72-18 |
Rinsing heads |
8 |
14 |
18 |
24 |
32 |
40 |
50 |
60 |
72 |
Filling heads |
8 |
14 |
18 |
24 |
32 |
40 |
50 |
60 |
72 |
Capping heads |
1 |
4 |
6 |
8 |
10 |
12 |
15 |
15 |
18 |
Capacity(BPH) |
500 |
1200 |
1800 |
3000 |
6000 |
10000 |
13000 |
15000 |
20000 |
Motor power(KW) |
1.1 |
4.3 |
4.5 |
6 |
9 |
11 |
15 |
21 |
24 |
Dimension(mm) |
1800*1280*2550 |
2000*1740*2750 |
2370*1890*2750 |
2760*2800*2850 |
4060*2285*2850 |
4020*3110*2850 |
5460*3300*2950 |
5556*4239*2950 |
6375*4820*3050 |
Weight(kg) |
1200 |
2300 |
3500 |
5100 |
7300 |
9600 |
12500 |
16200 |
19700 |
Feature
Stable Bottle-Neck Clamping: The suspending bottle-neck clamping design make the bottle stable during the high-speed moving conditions. By changing a few parts, it can meet the need of production of different types of bottles easily.

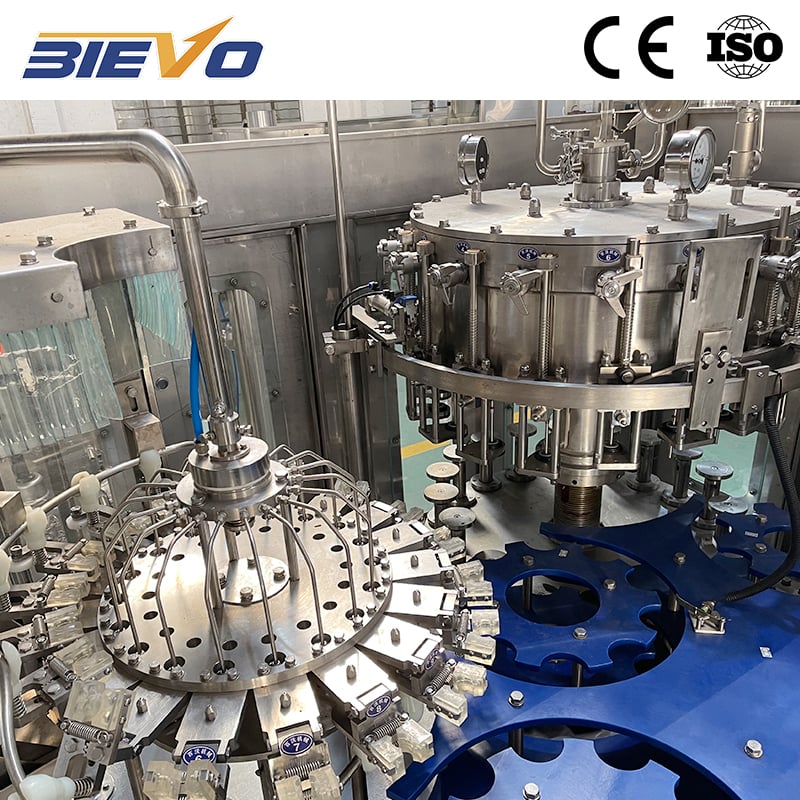

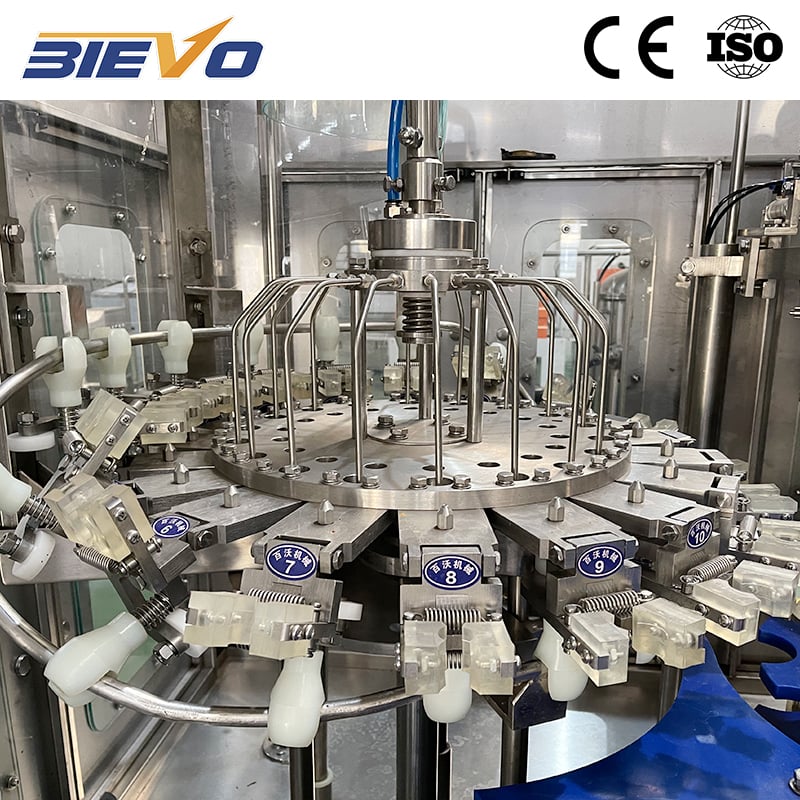

Stainless Steel Grab: The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle’s screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.

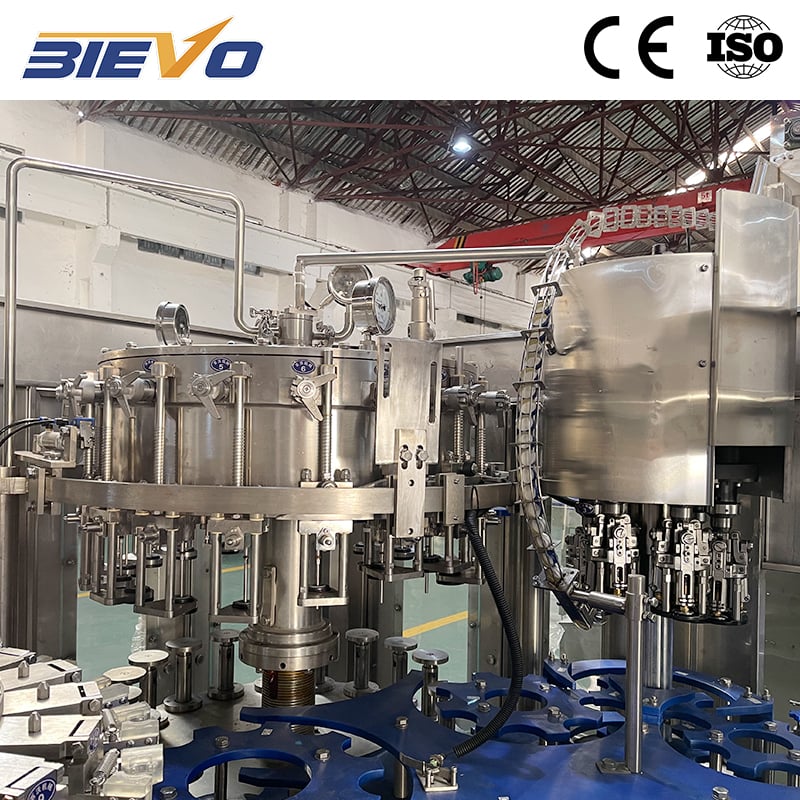

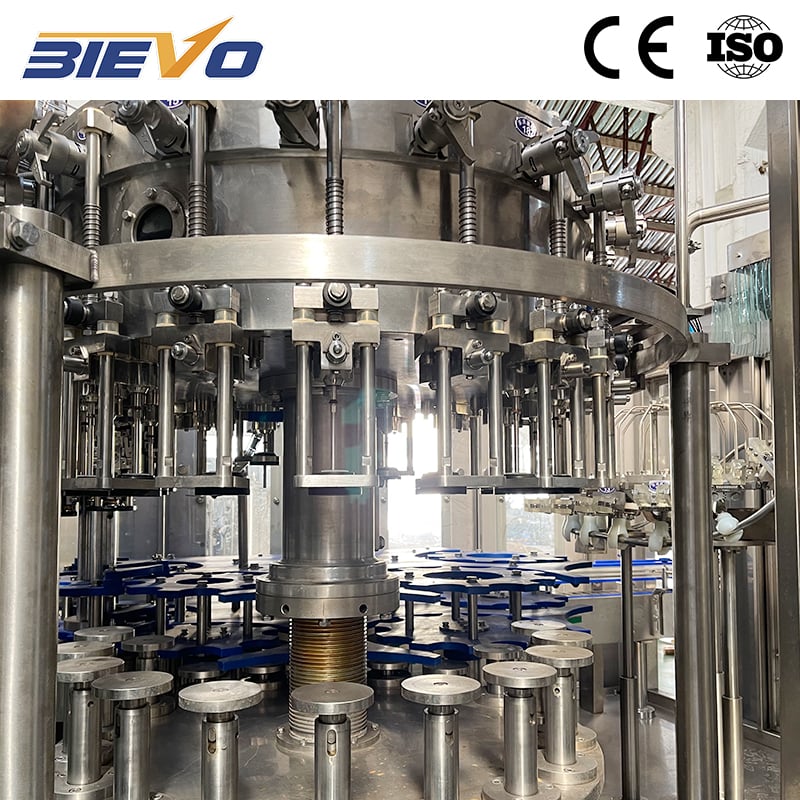

Fast & Stable Gravity Filling: The advanced gravity filling technology used in this machine makes the filling quick, steady and accurate.
Magnetic Torque Capping: Magnetic torque is used for screw capping, and the power of screw capping can be adjusted steplessly.Capping is reliable and do no harm to the caps.
Smart Control System: Advanced technologies, such as human-machine interface touch-screen and PLC program control are adopted in this machine.
Premium Materials & Components: All parts that have direct contact with the water are made of high quality stainless steel. The critical electricat components are from famous international companies,such as Mitsubishi, Omron to name a few.
