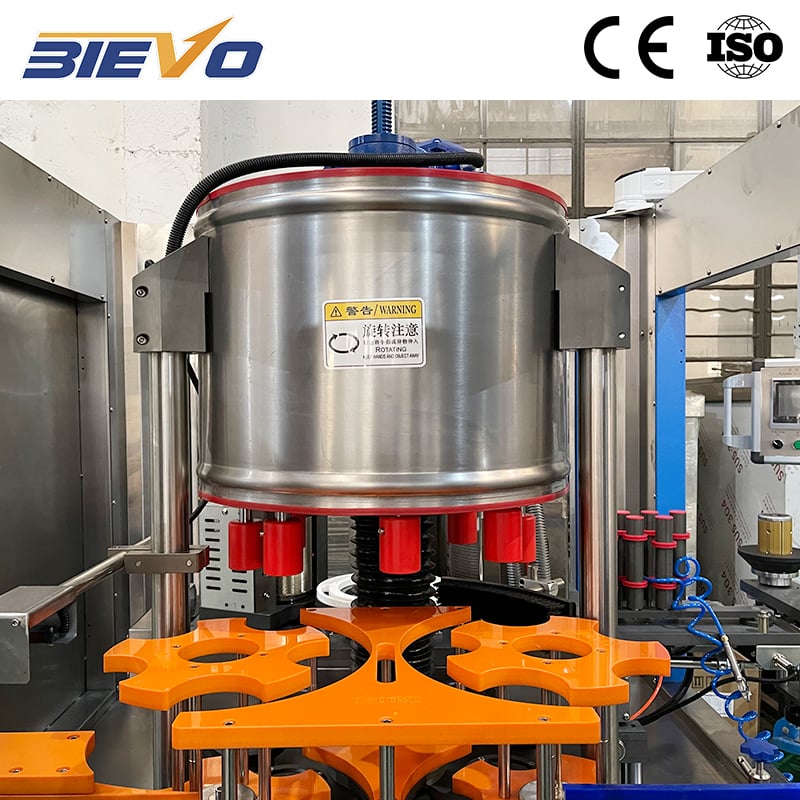

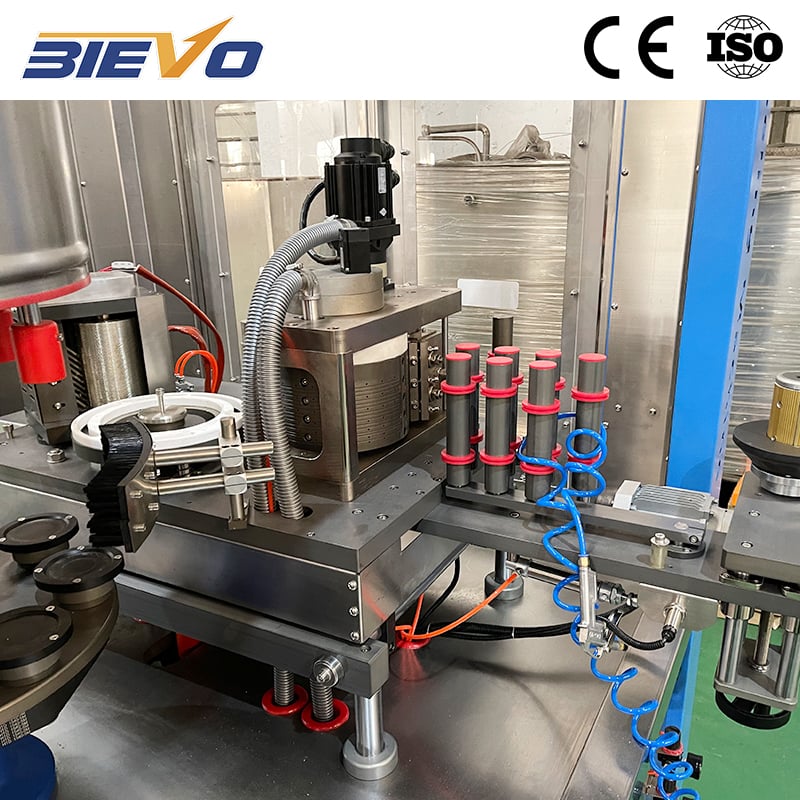

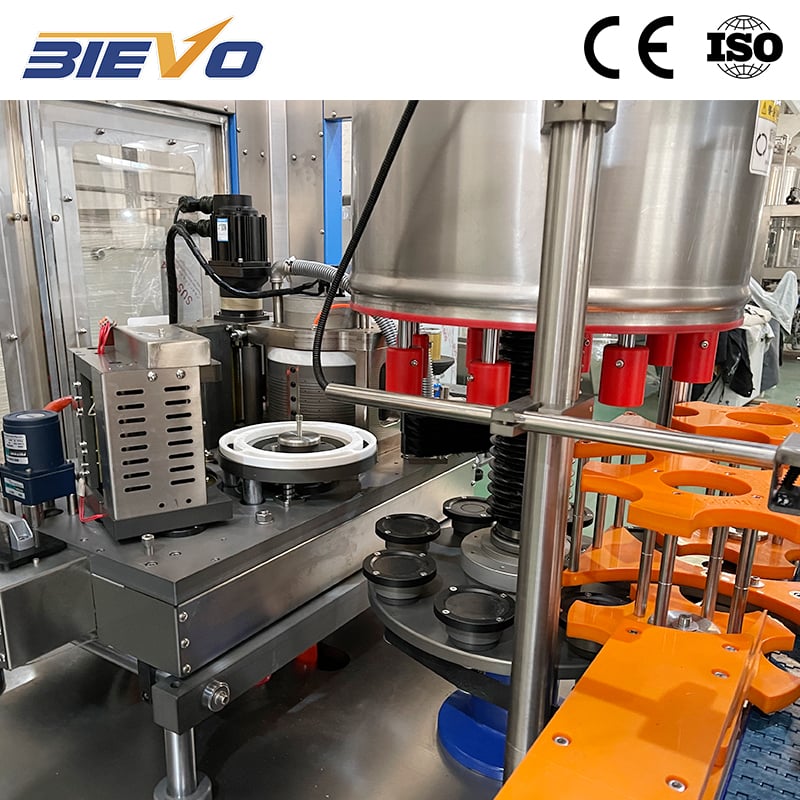

Hot Melt Glue Labeling Machine
This machine is suitable for the flat bottle, round bottle of single side, double side and square bottles on three sides,surrounded by all labeling. Product positioning labeling can be realized. Adopt mechanical positioning, the use of the appearance of the container itself shape, looking for anchor point, improve the reliability of the equipment. Headers can be adjusted multidimensional space: header can achieve 8 d adjustment, Angle adjustment, additional position indicator, accurate positioning adjustment. Regulation institutions all achieve rapid adjustment, without tools. All parts of each structure by the numerical control processing, parts with high precision, ensure the accuracy of equipment level. Using the screw and the star wheel match into the bottle out of the bottle, to ensure high-speed operation, production and out of the smooth and stable. 750W high power, large torque ultra small inertia give mark imported servo motor, a standard speed can reach 60 m/min. The production speed can reach 18,000 bottles/hour, and it can be connected to the high-speed filling line for production, which greatly improves the production speed and saves production costs.
- Overview
- Recommended Products
Overview
This machine is suitable for the flat bottle, round bottle of single side, double side and square bottles on three sides,surrounded by all labeling. Product positioning labeling can be realized. Adopt mechanical positioning, the use of the appearance of the container itself shape, looking for anchor point, improve the reliability of the equipment. Headers can be adjusted multidimensional space: header can achieve 8 d adjustment, Angle adjustment, additional position indicator, accurate positioning adjustment. Regulation institutions all achieve rapid adjustment, without tools. All parts of each structure by the numerical control processing, parts with high precision, ensure the accuracy of equipment level. Using the screw and the star wheel match into the bottle out of the bottle, to ensure high-speed operation, production and out of the smooth and stable. 750W high power, large torque ultra small inertia give mark imported servo motor, a standard speed can reach 60 m/min. The production speed can reach 18,000 bottles/hour, and it can be connected to the high-speed filling line for production, which greatly improves the production speed and saves production costs.
Parameter
Model |
OPP-1 |
Power supply |
AC380V 50Hz 20KW |
Production speed |
9000-36000BPH |
Labeling accuracy |
±1mm |
Label max height |
195mm |
Label paper core’s inn dia |
Φ76.2mm |
Label ext. dia |
Φ400mm |
Overall size |
2000-2150-2100mm |
