Semi-automatic bottle blowing machine
Suitable for the productionof PET bottles; widely used inmineral water bottles,including beverage bottles,cosmetics bottles, edible oilbottles and so on.
- Overview
- Recommended Products
Overview
Suitable for the productionof PET bottles; widely used inmineral water bottles,including beverage bottles,cosmetics bottles, edible oilbottles and so on.
Parameter
Item |
|
BVM-1 |
BVM-2 |
BVM-3 |
BVM-1-20 |
|
Theortical output(Pcs/h) |
500 |
900 |
1800 |
90 |
Product |
Volume(L) |
5 |
2 |
2 |
20 |
Max. height(mm) |
360 |
360 |
360 |
550 |
|
Max. diameter(mm) |
120 |
105 |
105 |
300 |
|

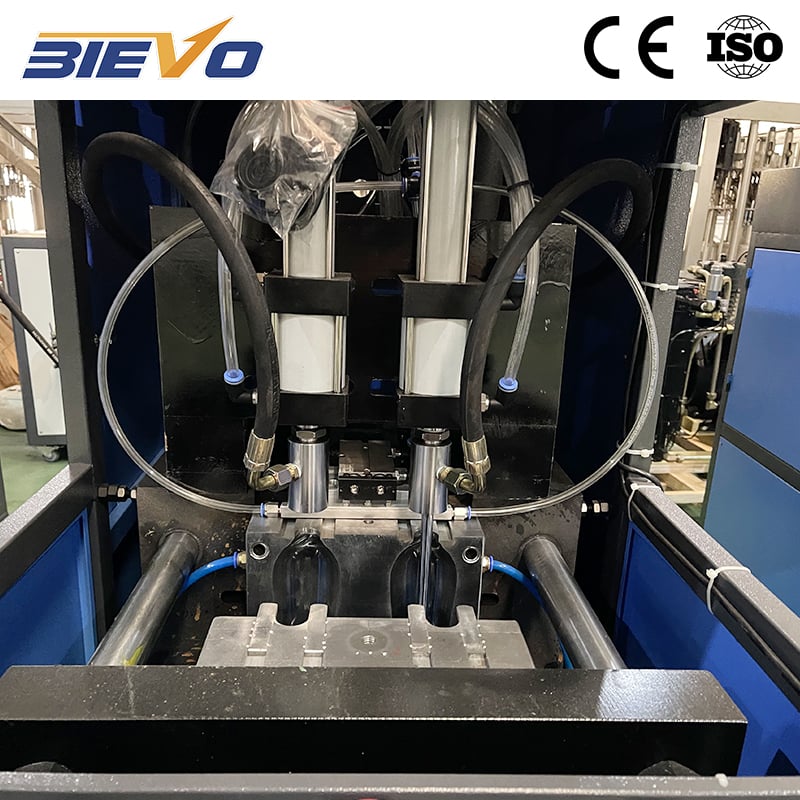

Mould |
Number of cavities |
1 |
2 |
4 |
1 |
Mould piate dimension(LxH mm) |
490×470 |
490×405 |
490×405 |
620×620 |
|
Mould thickness(mm) |
250 |
220 |
220 |
380 |
|
Mould opening stroke(mm) |
220 |
180 |
180 |
380 |
|
Electrical |
Power |
220-380V/50-60Hz |
220-380V/50-60Hz |
220-380V/50-60Hz |
220-380V/50-60Hz |
Total power(KW) |
11 |
11 |
21 |
36 |
|
Heating power(KW) |
10 |
10 |
20 |
37 |
|
Machine |
Main body dimension(LxWxH) |
1.5×0.65×2.0 |
1.5×0.65×2.0 |
1.5×0.65×2.0 |
2.1×0.75×1.6 |
Main body weight(Kg) |
600 |
550 |
550 |
900 |
|

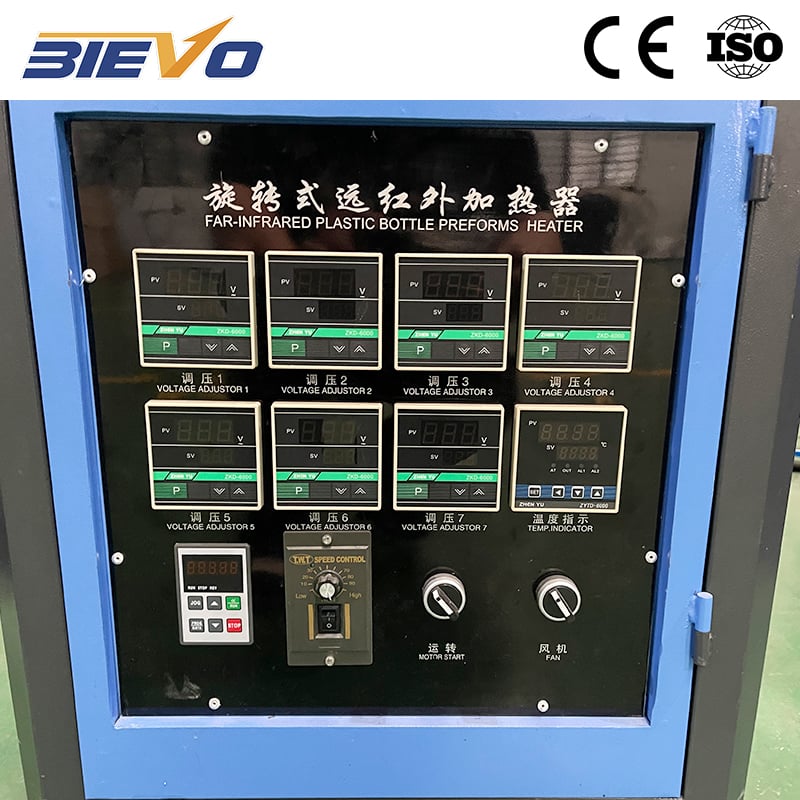

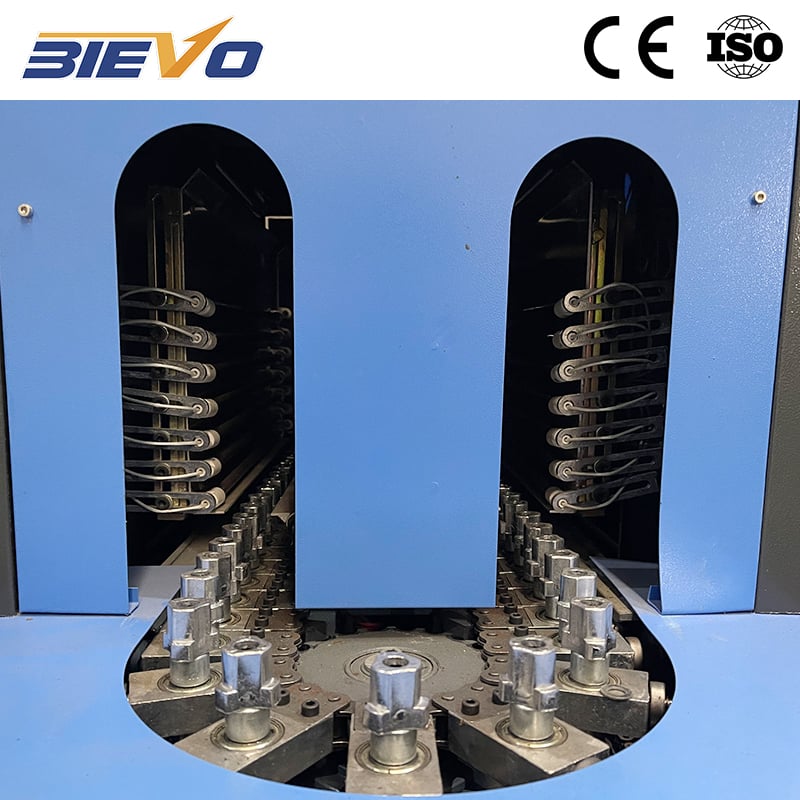

Pre-heater(LxWxH) |
1.5×0.65×1.5 |
1.4×0.65×1.5 |
1.8×0.65×1.5 |
2.7×0.7×1.6 |
|
Pre-heater weight(Kg) |
300 |
300 |
350 |
400 |
