3L-10L water filling machine
The bottled water filling production line produced by BIEVO Machinery based on good stability, easy operation and supports customization. The water filling equipment is suitable for 3L-10L PET bottles mineral water, drinking water, pure water etc. Different models water filler can satisfy various requirement of output from 500BPH to 4000BPH.
- Overview
- Recommended Products
Overview
The bottled water filling production line produced by BIEVO Machinery based on good stability, easy operation and supports customization. The water filling equipment is suitable for 3L-10L PET bottles mineral water, drinking water, pure water etc. Different models water filler can satisfy various requirement of output from 500BPH to 4000BPH.
The water filling machine combines washing, filling and capping function with fully automatic process, using the gravity or micro pressure filling ways, make the speed is faster and more stable.
Suitable Products: Purified water, mineral water, spring water, etc.
Suitable Containers: PET bottles of various capacities and shapes
Filling Methods: Mechanical valve filling, flow meter filling, weight-based filling
Production Capacity: 500-4000 BPH
Parameter
Model |
CGX4-4-1 |
CGX12-12-4 |
CGX16-16-4 |
CGX20-20-5 |
Production capacity(bph) |
500-600 |
2000-2500 |
3000-3500 |
3500-4000 |
Suitable bottle diameter(mm) |
Diameter:110-220 height:170-380 |
|||
Spraying pressure(kg/cm3) |
2-3 |
|||
Spraying pressure(kg/cm2) |
3.0 |
4.0 |
5.5 |
7.5 |
Overall dimension(L*W*H) |
3200*1400*2500 |
3800*2100*2550 |
3800*2300*2800 |
4500*2800*2900 |
Weight(kg) |
2500 |
4800 |
5500 |
7500 |
Feature
Stable Bottle-Neck Clamping: The suspending bottle-neck clamping design make the bottle stable during the high-speed moving conditions. By changing a few parts, it can meet the need of production of different types of bottles easily.

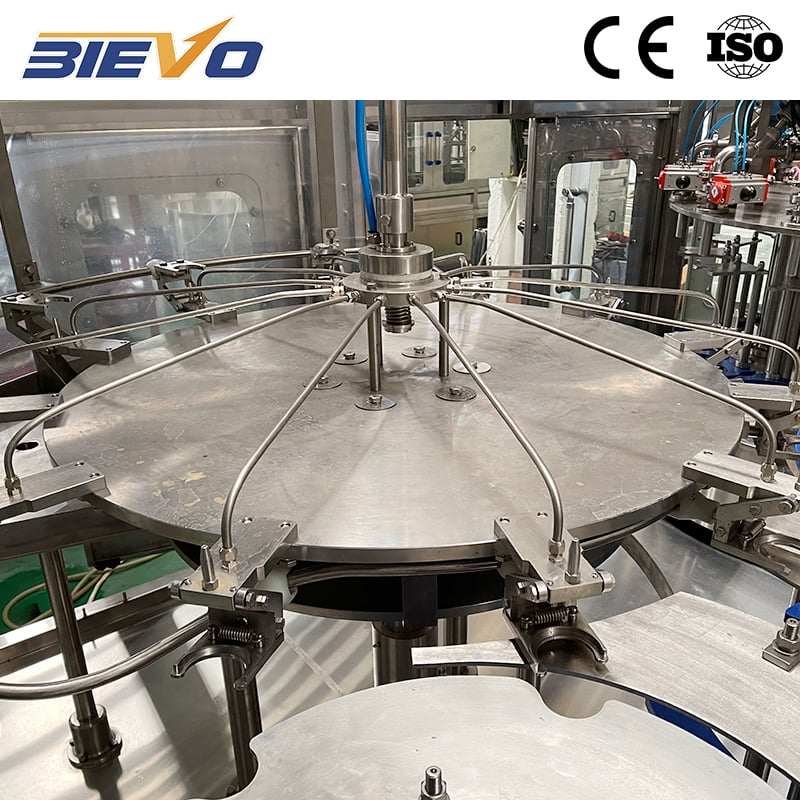

Stainless Steel Grab: The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle’s screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.

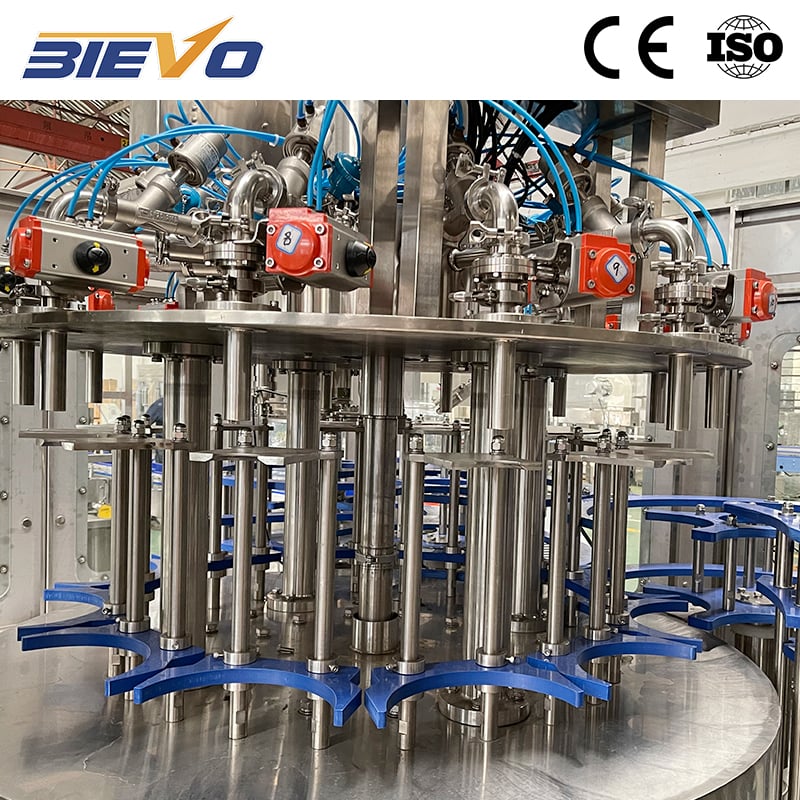

Fast & Stable Gravity Filling: The advanced gravity filling technology used in this machine makes the filling quick, steady and accurate.

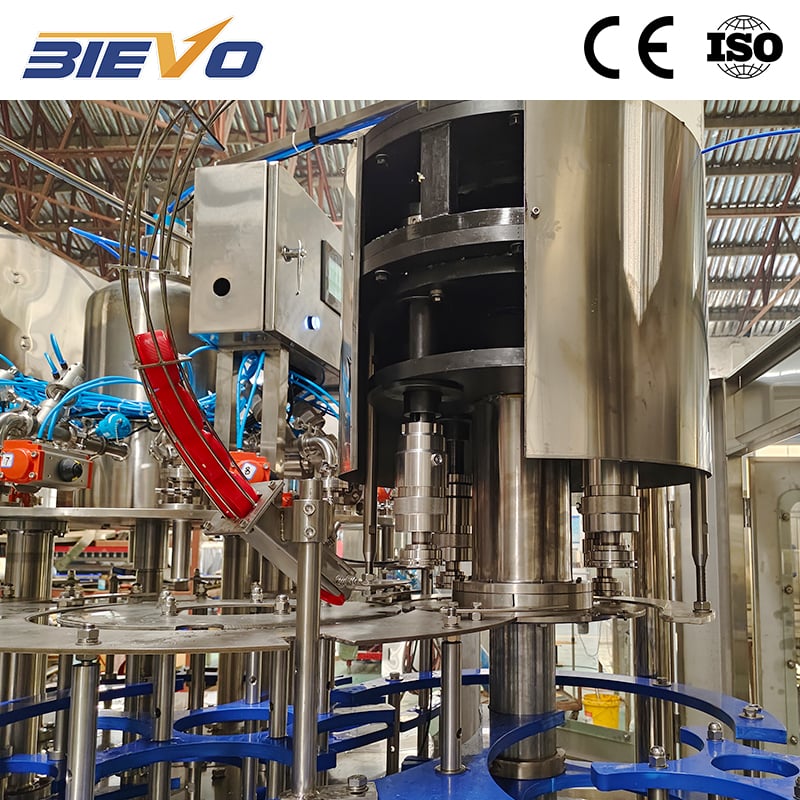

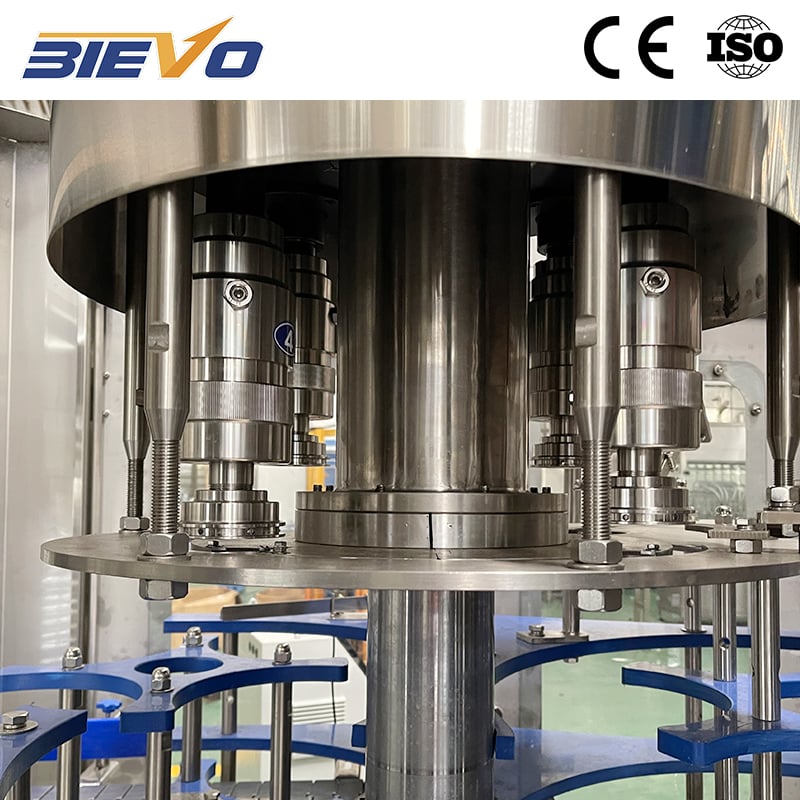

Magnetic Torque Capping: Magnetic torque is used for screw capping, and the power of screw capping can be adjusted steplessly.Capping is reliable and do no harm to the caps.
Smart Control System: Advanced technologies, such as human-machine interface touch-screen and PLC program control are adopted in this machine.
Premium Materials & Components: All parts that have direct contact with the water are made of high quality stainless steel. The critical electricat components are from famous international companies,such as Mitsubishi, Omron to name a few.
