Carbonated beverage filling production line

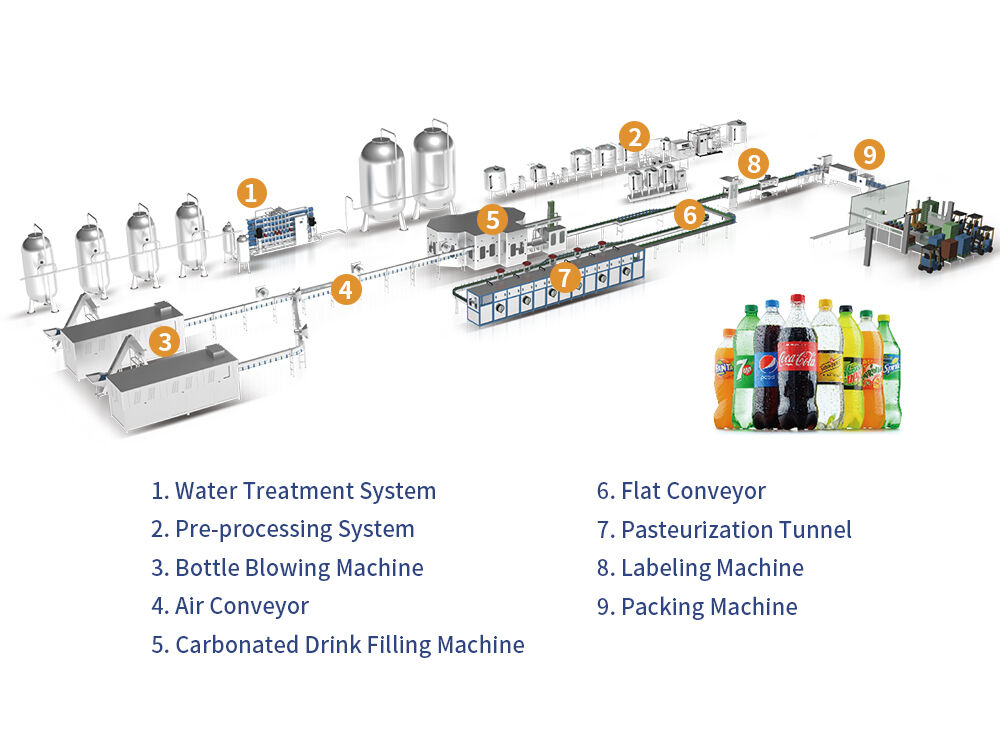

The carbonated beverage filling production lineis suitable for soft drinks, soda, sparkling water, CSD drinks etc. Complete carbonated beverage production lineincludes: water treatment equipment, CO2 mixer machine, carbonated beverage filling machine, labeling machine, film packaging machine, carton packing machine, palletizer etc.
- Overview
- Recommended Products
Overview
The carbonated beverage filling production lineis suitable for soft drinks, soda, sparkling water, CSD drinks etc. Complete carbonated beverage production lineincludes: water treatment equipment, CO2 mixer machine, carbonated beverage filling machine, labeling machine, film packaging machine, carton packing machine, palletizer etc.
Model |
DGZ12-12-6 |
DGZ18-18-6 |
DGZ24-24-8 |
DGZ32-32-8 |
DGZ40-40-10 |
DGZ50-50-12 |
DGZ60-60-15 |
Capacity(bph)(mm) |
2000-3000 |
3000-5000 |
6000-8000 |
8000-11000 |
12000-15000 |
15000-18000 |
18000-22000 |
Filling pressure(Mpa) |
≤0.4 |
||||||
Applicable cap shape |
Plastic screw cap |
||||||
Applicable bottle type |
Bottle diameter:50-100mm Height:150-320mm Volume:330-1500ml |
||||||
Gas source pressure(Amp) |
0.6 |
||||||
Gas consumption(m3/min) |
0.4 |
0.4 |
0.6 |
0.6 |
0.6 |
0.8 |
0.8 |
Total power(kw) |
4.6 |
5.4 |
6.4 |
8.5 |
11 |
12 |
15 |
Weight(kg) |
2600 |
3500 |
5200 |
6500 |
8000 |
10000 |
12800 |
Dimension(L*W*H)(mm) |
2450*1650 *2100 |
2600*1800 *2100 |
3000*2200 *2400 |
4000*2220 *2400 |
4100*2700 *2600 |
4500*3400 *2600 |
5400*4100 *2600 |

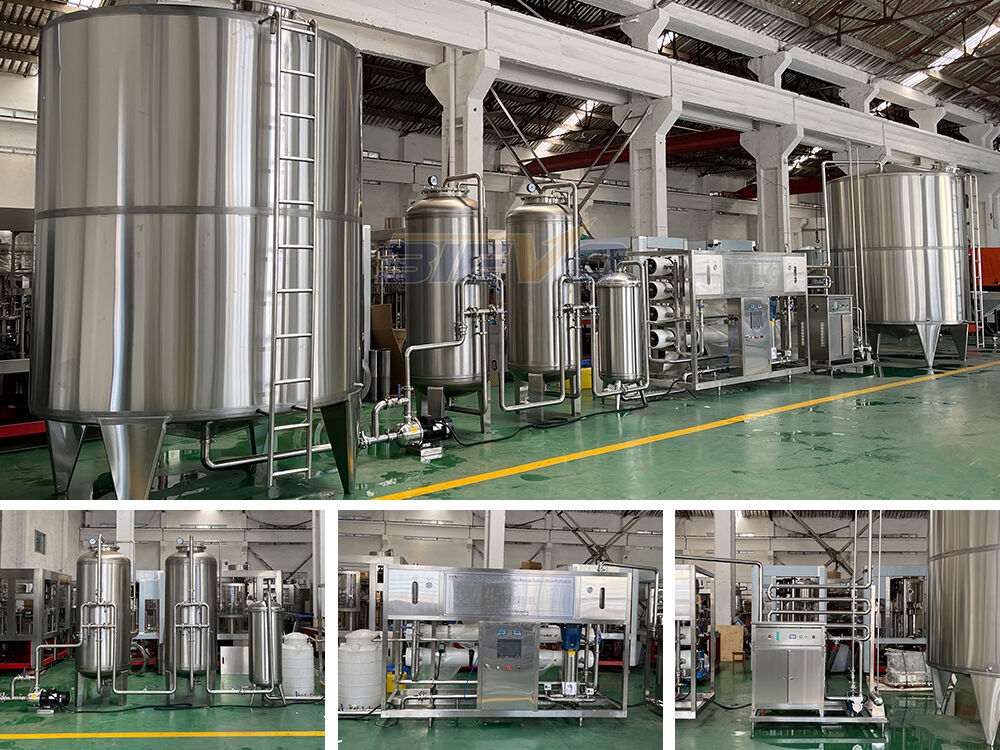

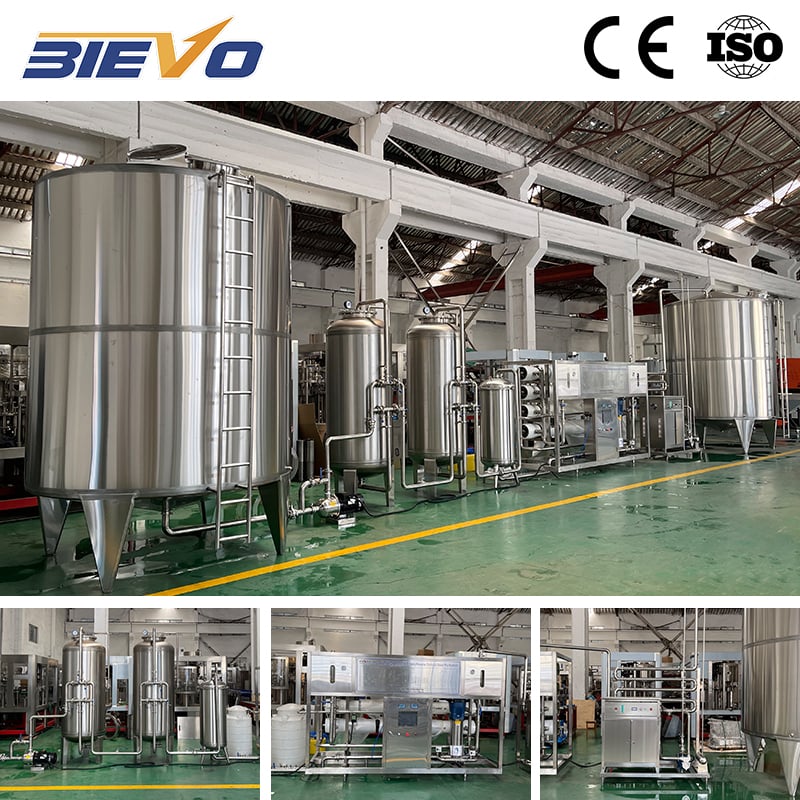

（1）Water treatment system
Water treatment system is suitable for all kinds of water treatment equipment of pure water, mineral water, drinking water, beverage product water and process water. Water Treatment System Components:
1. Reverse osmosis (RO) equipment series
2. Filter equipment series
3. Membrane products and filter elements
4. Electrodialysis, ion exchanger, ozone sterilization system

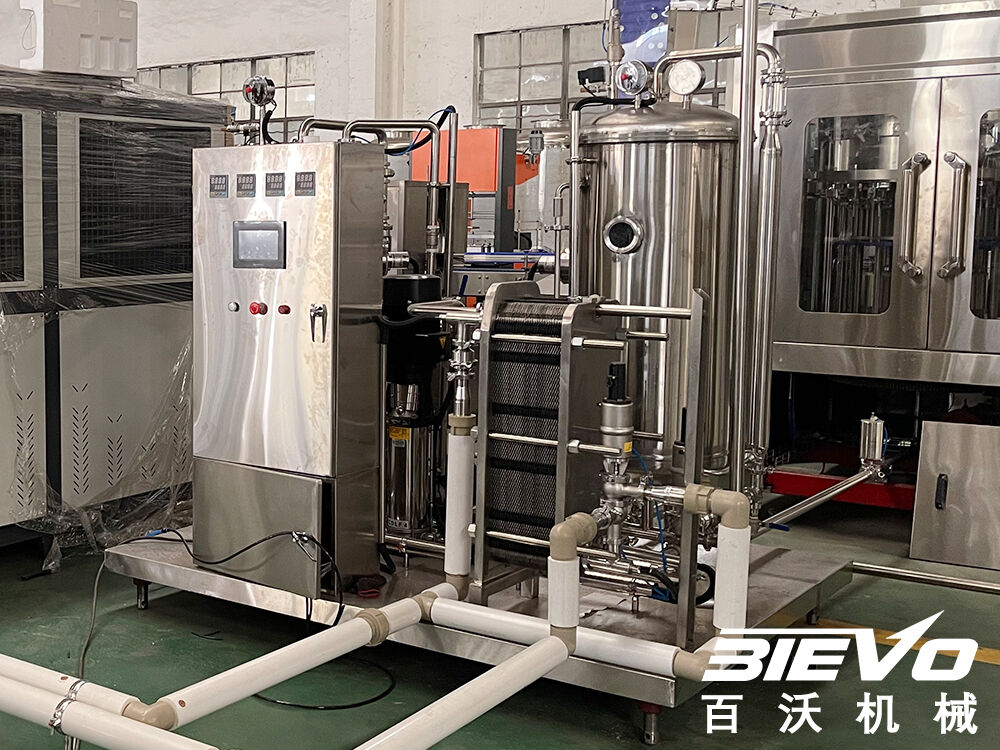

（2）CO2 Beverage Mixer Machine
CO2 beverage mixer machine blends water, syrup and CO2 together. The mixer machine adopts vacuum deoxidation system. The beverage mixer machine precision is high and the CO2 is fully mixed.

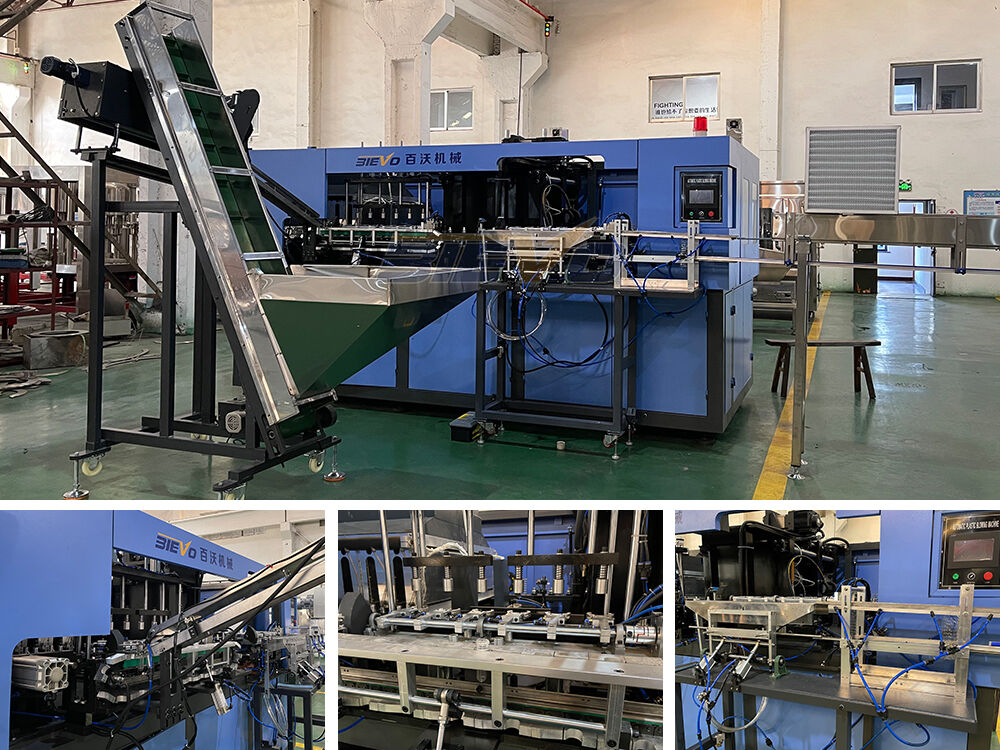

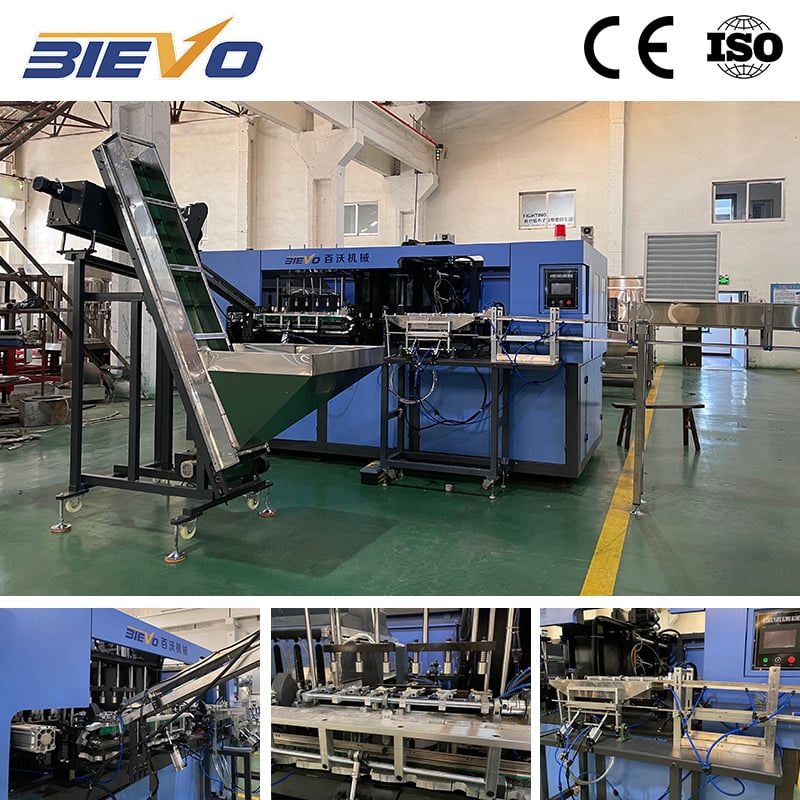

（3）PET Bottle Blow Molding Machine
The full automatic blowing machine is suitable for blowing various plastic containers and beverage bottles made of PET. Full automatic blowing machine is used in blowing various juice beverage bottles, carbonated beverage bottles, mineral water, pure water bottles, condiment bottles, oil bottles etc.

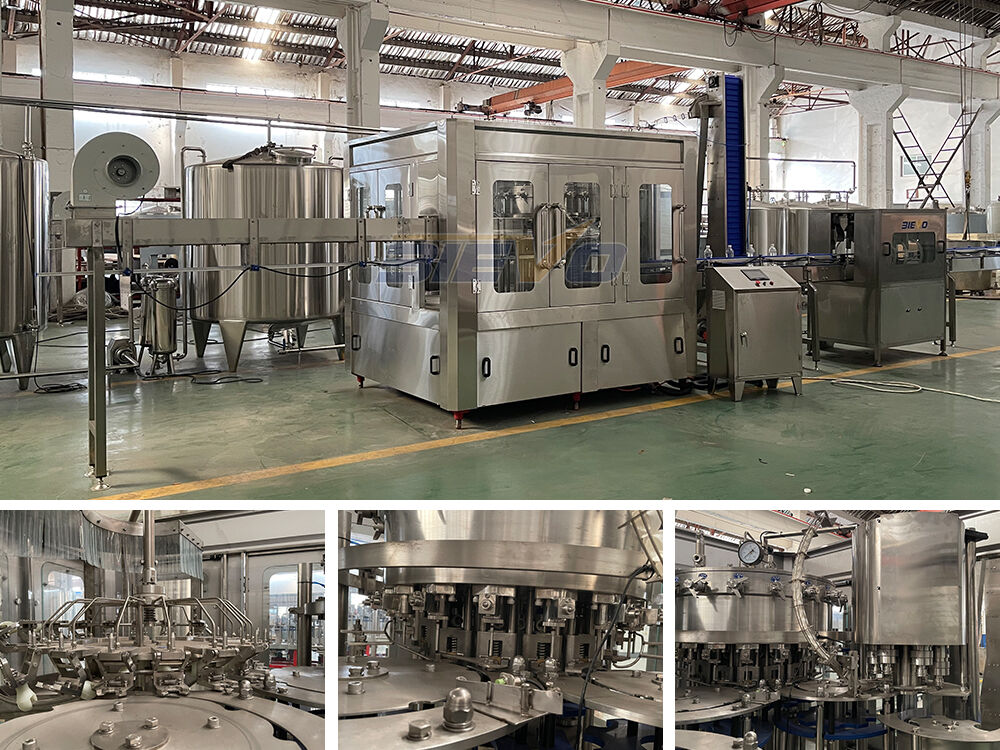

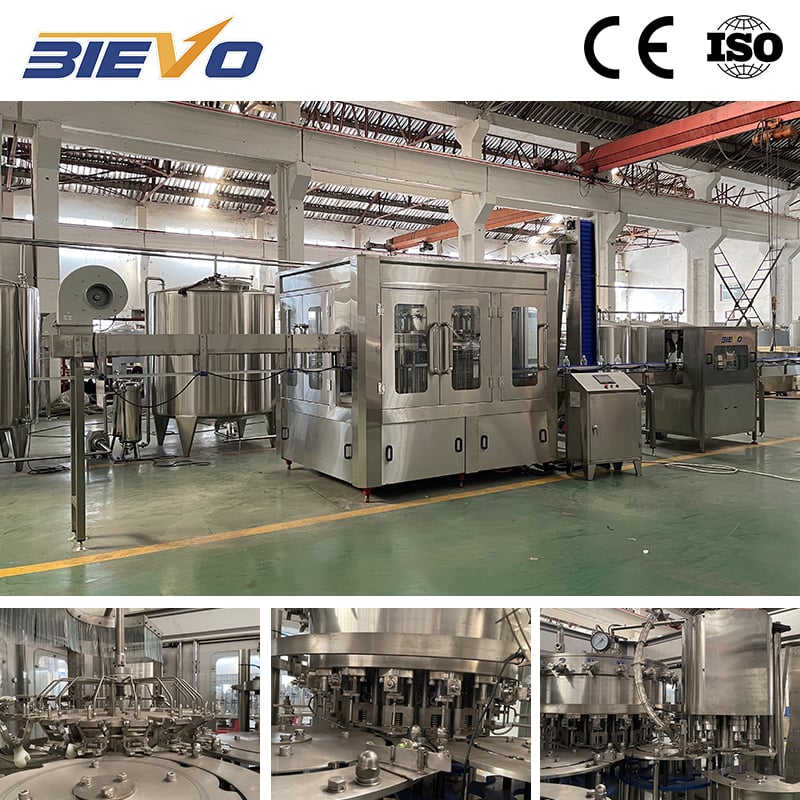

（4）Filling Machine
BIEVO Machinery has developed a variety of carbonated beverage filling machine, provides small and medium-sized beverage factories with pre-sales and after-sales service. The carbonated drinks filling machine combines washing, filling and capping as one automatic body.

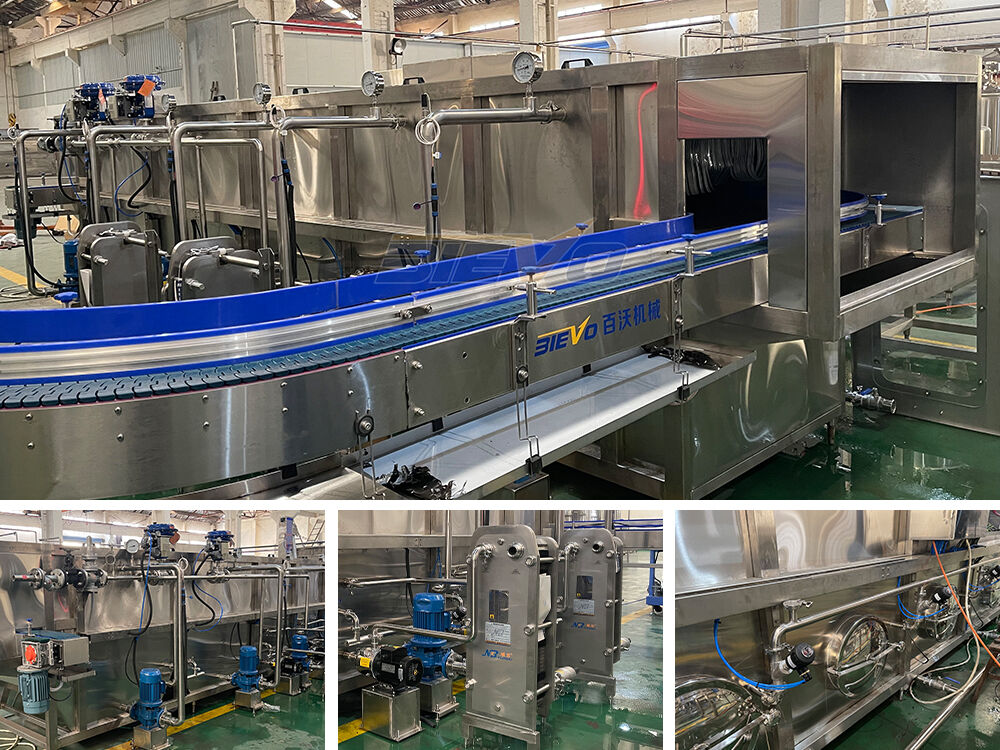

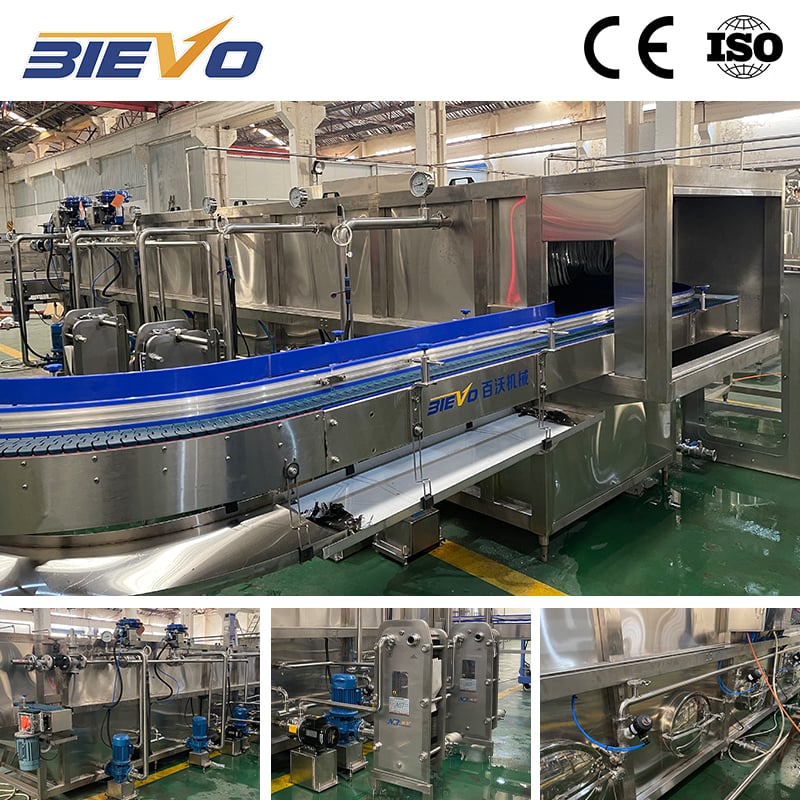

（5）Pasteurization tunnel
Pasteurized Tunnel is specially for dairy, juice, beverage, beer, food, medicine and other filling or packaging pasteurization equipment, is the material through sterilization, cooling to achieve the purpose of extending the shelf life of the ideal equipment, especially the automatic production line necessary for secondary sterilization equipment.

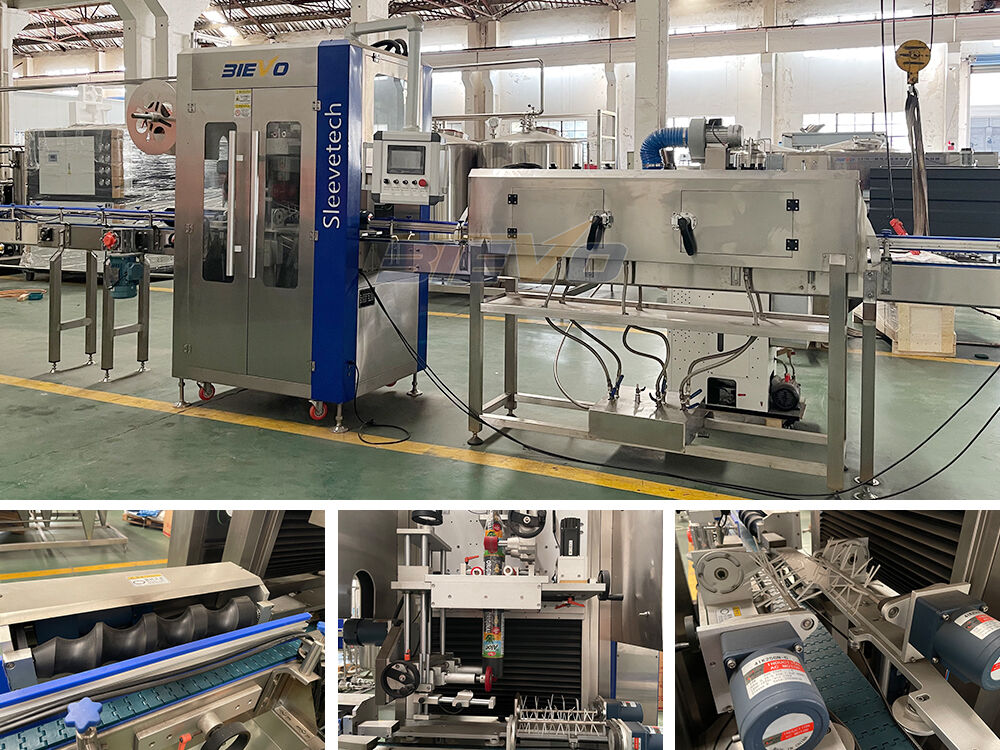

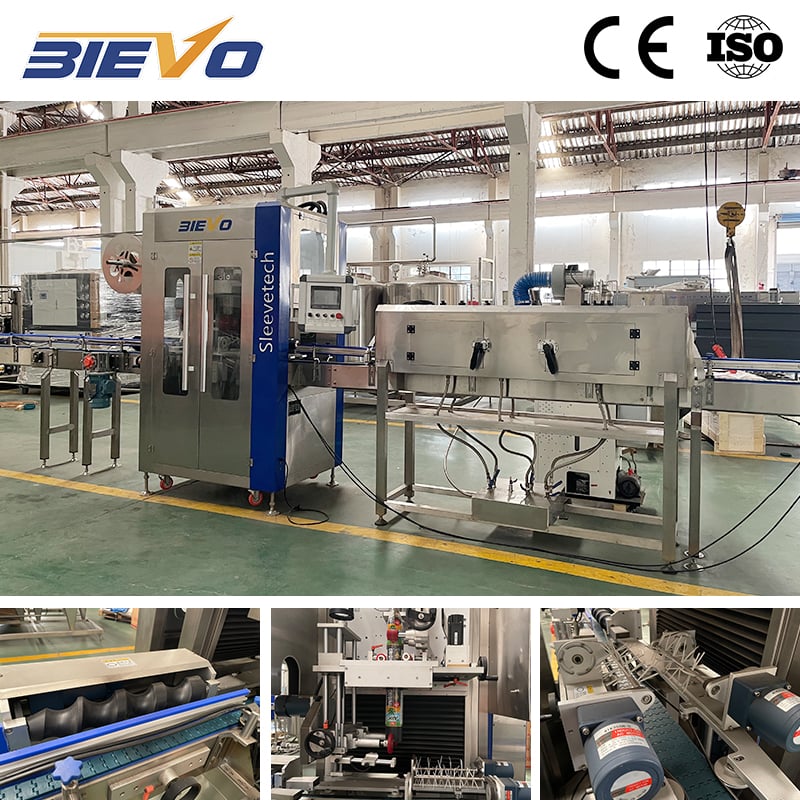

（6）Labeling Machine & Sleeve Labeling Machine
The automatic labeling machineare divided into self-adhesive labeling machine, hot melt glue labeling machine, sleeve labeling machine. The labeling equipment is suitable for various bottle type juice filling, tea beverage filling, dairy filling, pure water filling, condiment filling, beer filling, sports beverage filling and other food and beverage industries.

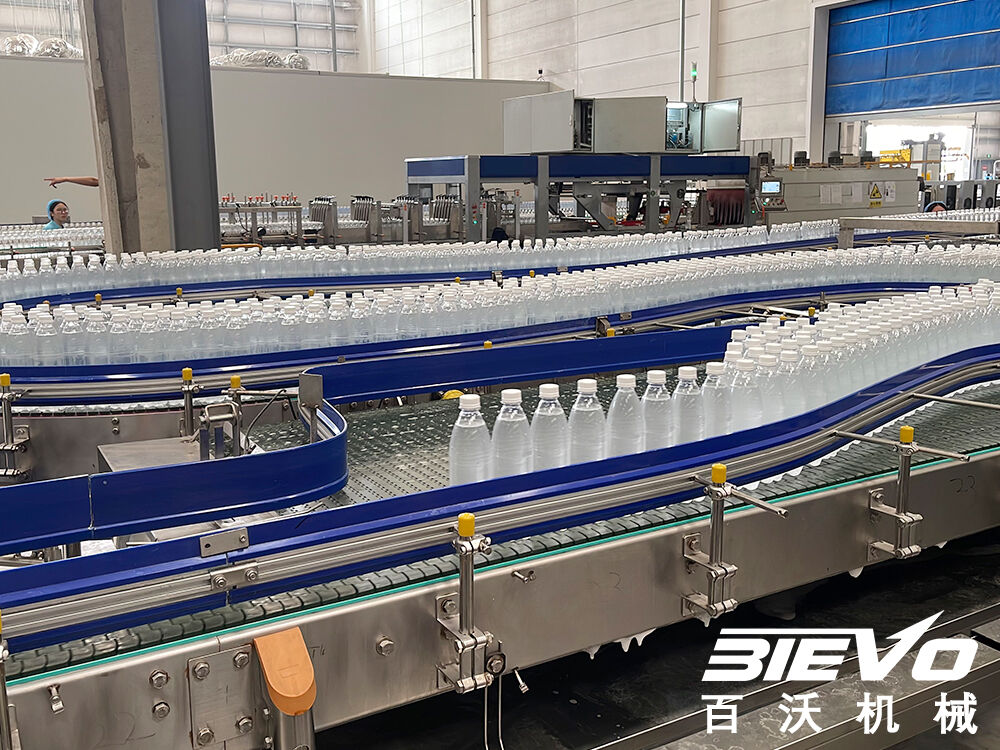

（7）Flat Conveyor
The flat conveyor is an integral component of the filling line. With its stable, reliable, and efficient performance, it ensures the seamless circulation of bottles between various processing stages. It can be customized to fit the layout of the client's factory.

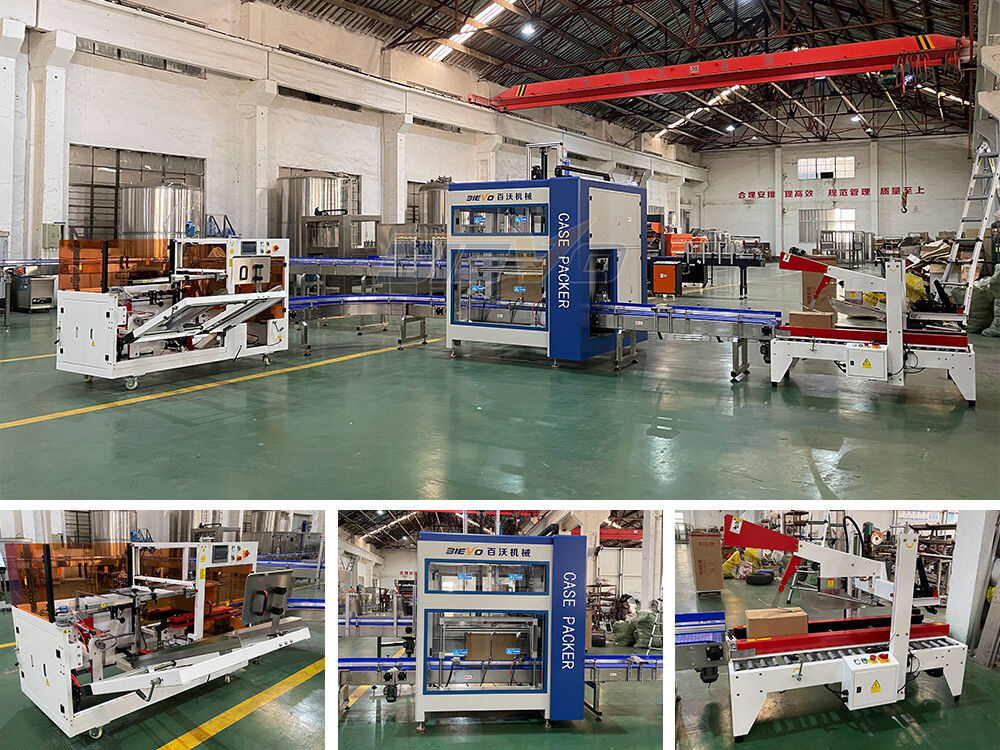

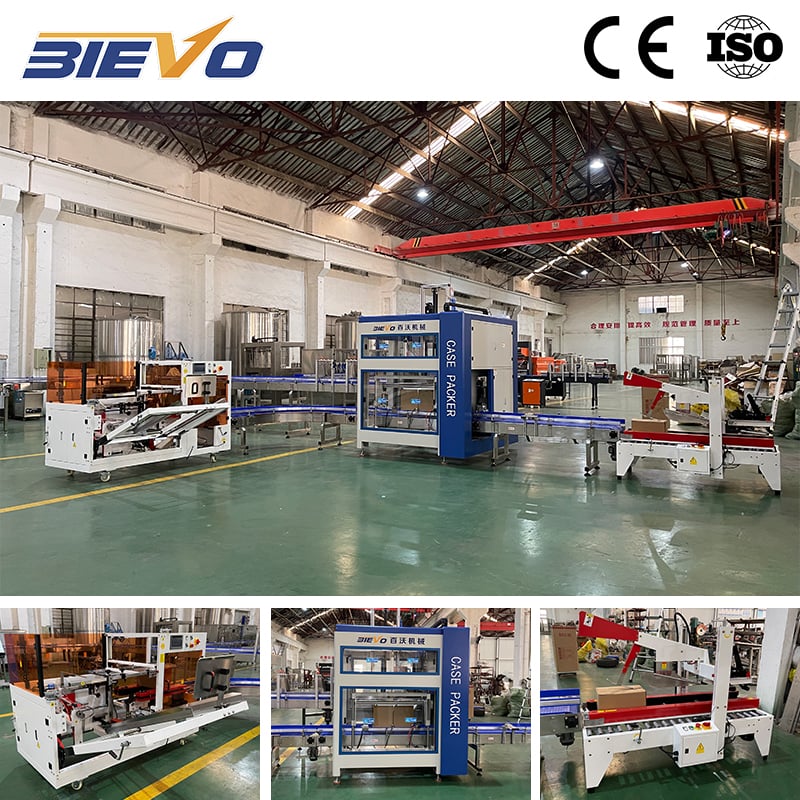

（8）Packing Sysyem
The automatic packaging machine is developed especially for mineral water, beverage, wine, beer, product and so on infusion medicine bottle combination packaging, with stable function, and the packed articles tight and orderly.
1. Shrink Film Packing Machine
2. Lineal Type PE Film Shrink Wrapper
3. High-speed Wrapping Machine
4. Carton Opening Packing Sealing System
