Glass bottle juice filling machine
The glass bottle juice filling machine is used for glass bottle hot filling and production of mango juice, strawberry juice, blueberry juice, apple juice, orange juice, etc,. This glass bottle juice filling machine integrates washing,filling capping together. This glass bottle juice filling machine is scientific and reasonable design, simple operation; is the first choice equipment for hot filling beverage production.
- Overview
- Recommended Products
Overview
The glass bottle juice filling machine is used for glass bottle hot filling and production of mango juice, strawberry juice, blueberry juice, apple juice, orange juice, etc,. This glass bottle juice filling machine integrates washing,filling capping together. This glass bottle juice filling machine is scientific and reasonable design, simple operation; is the first choice equipment for hot filling beverage production.
The glass bottle juice filling machine adopts clip bottle neck suspension process design, and uses the filling valve lifting, can satisfy the requirement of a 95℃ hot filling technology. Filling movements is smooth, fast, high precision, reliable sealing, low material loss of functionality, and effectively avoid the secondary pollution of bottle opening. Simply replacing equivalent components, can realize conversion between different bottles .
Applicable Products: Juices, tea drinks, functional drinks, milk drinks, etc.
Suitable Container: glass bottles of various shapes and capacities
Filling Modes: Hot filling
Production Capacity: 500-20000 BPH
Parameter
Model |
BRGZ8-6-1 |
BRGZ14-12-4 |
BRGZ18-18-6 |
BRGZ24-24-8 |
BRGZ32-32-10 |
BRGZ40-40-12 |
BRGZ50-50-15 |
BRGZ60-60-15 |
BRGZ72-72-18 |
Rinsing heads |
8 |
14 |
18 |
24 |
32 |
40 |
50 |
60 |
72 |
Filling heads |
8 |
14 |
18 |
24 |
32 |
40 |
50 |
60 |
72 |
Capping heads |
1 |
4 |
6 |
8 |
10 |
12 |
15 |
15 |
18 |
Capacity(BPH) |
500 |
1200 |
1800 |
3000 |
6000 |
10000 |
13000 |
15000 |
20000 |
Motor power(KW) |
1.1 |
4.3 |
4.5 |
6 |
9 |
11 |
15 |
21 |
24 |
Dimension(mm) |
1800*1280*2550 |
2000*1740*2750 |
2370*1890*2750 |
2760*2800*2850 |
4060*2285*2850 |
4020*3110*2850 |
5460*3300*2950 |
5556*4239*2950 |
6375*4820*3050 |
Weight(kg) |
1200 |
2300 |
3500 |
5100 |
7300 |
9600 |
12500 |
16200 |
19700 |
Feature
Stable Bottle-Neck Clamping: The suspending bottle-neck clamping design make the bottle stable during the high-speed moving conditions. By changing a few parts, it can meet the need of production of different types of bottles easily.

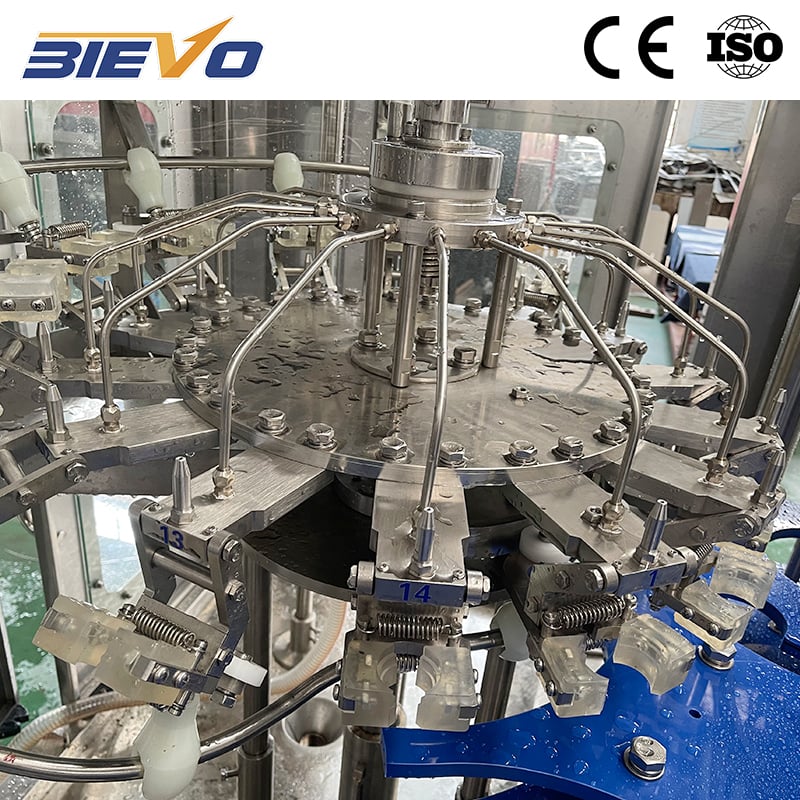

Stainless Steel Grab: The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle’s screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.

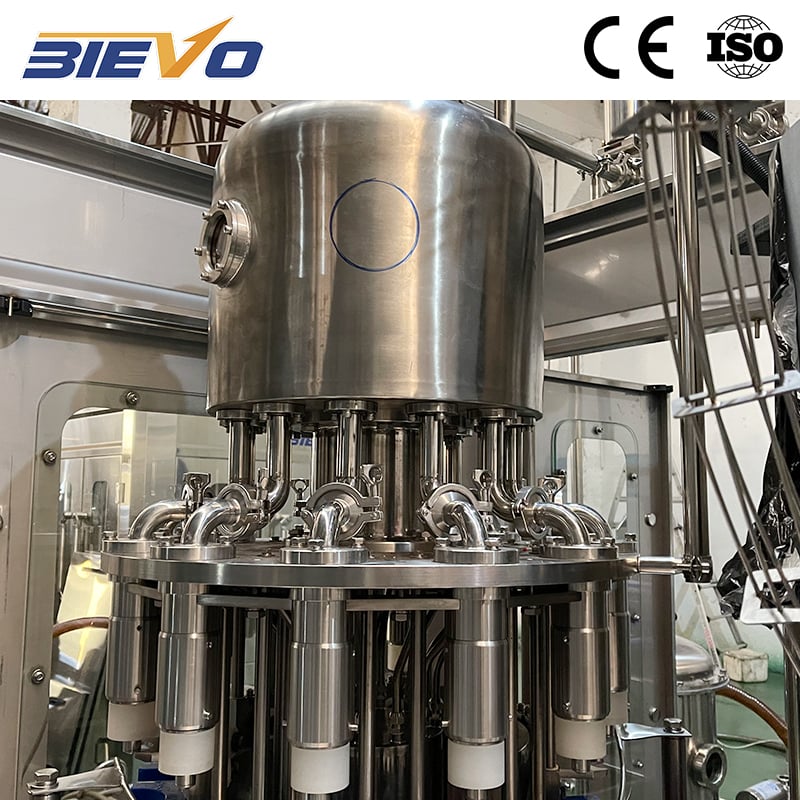

Fast & Stable Gravity Filling: The advanced gravity filling technology used in this machine makes the filling quick, steady and accurate.

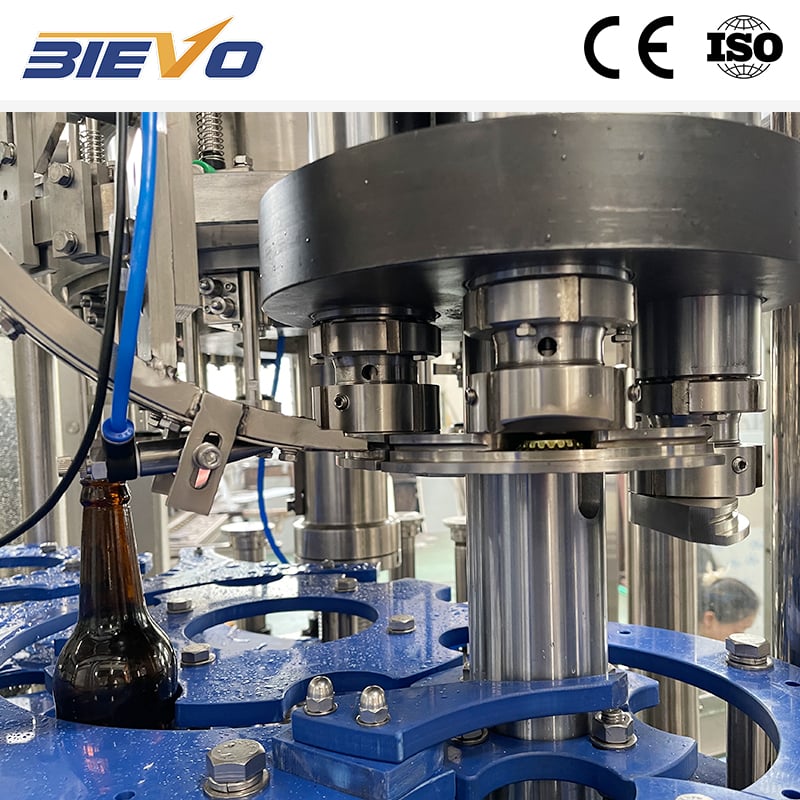

Magnetic Torque Capping: Magnetic torque is used for screw capping, and the power of screw capping can be adjusted steplessly.Capping is reliable and do no harm to the caps.
Smart Control System: Advanced technologies, such as human-machine interface touch-screen and PLC program control are adopted in this machine.
Premium Materials & Components: All parts that have direct contact with the water are made of high quality stainless steel. The critical electricat components are from famous international companies,such as Mitsubishi, Omron to name a few.
