5 gallon water filling machine
The barreled water filling machine is used for 3 Gallon, 5 Gallon water production, with optional capacity from 100b/h to 1200b/h. The barreled water filling equipment is the ideal equipment for mineral water, distilled water, drinking water and purified water producing process.
- Overview
- Recommended Products
Overview
The barreled water filling machine is used for 3 Gallon, 5 Gallon water production, with optional capacity from 100b/h to 1200b/h. The barreled water filling equipment is the ideal equipment for mineral water, distilled water, drinking water and purified water producing process.

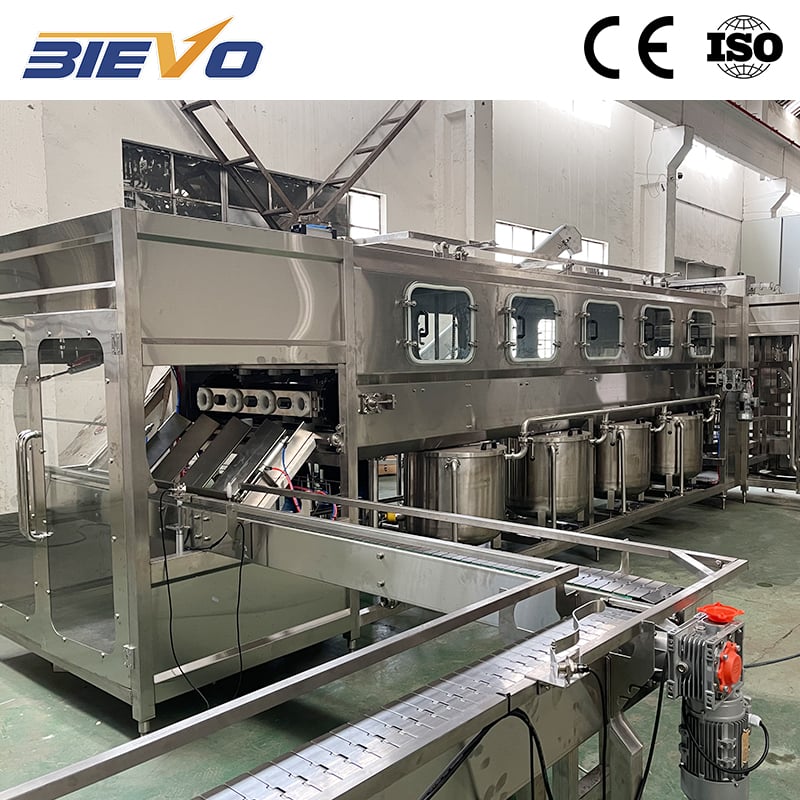

5 gallon barreled water production line integrates bottle washing, filling, and capping into one unit. In order to achieve the purpose of washing and sterilizing, The washing machine use multi-washing liquid spray and-thimerosal spray, This thimerosal can be used circularly, The capping machine can cap barrel automatically , this line equips with water spraying device in order to ensure those caps sterilizer and clean. it also can automatically carry out barrel, washing, sterilizing, filling, capping, counting and products discharging, with complete function, modern design and high degree of automation, it is a new kind of barreeled water auto-production line, which intergrates mechanism, electricity and pneumatics technologies together .
Suitable Products: Purified water, mineral water, spring water, etc.
Suitable Containers: 3-5 Gallons
Filling Methods: Mechanical valve filling, flow meter filling, weight-based filling
Production Capacity: 100-1200 BPH
Parameter
Model |
QF-100 |
QF-300 |
QF-450 |
QF-600 |
QF-900 |
QF-1200 |
Filling heads |
1 |
2 |
3 |
4 |
6 |
8 |
Volume(L) |
18.9 |
|||||
Barrel size |
270*490 |
|||||
Capacity(bph) |
100-120 |
200-300 |
450 |
600 |
900 |
1200 |
Gas pressure(Mpa) |
0.4-0.6 |
0.6 |
||||
Gas consumption(m3/min) |
0.37 |
0.6 |
0.8 |
1 |
1.5 |
1.8 |
Motor power(kw) |
1.38 |
3.8 |
3.8 |
7.5 |
9.75 |
13.5 |
Rated voltage(V) |
380V/50Hz |
|||||
Weight(kg) |
680 |
1500 |
2100 |
3000 |
3500 |
4500 |
Feature

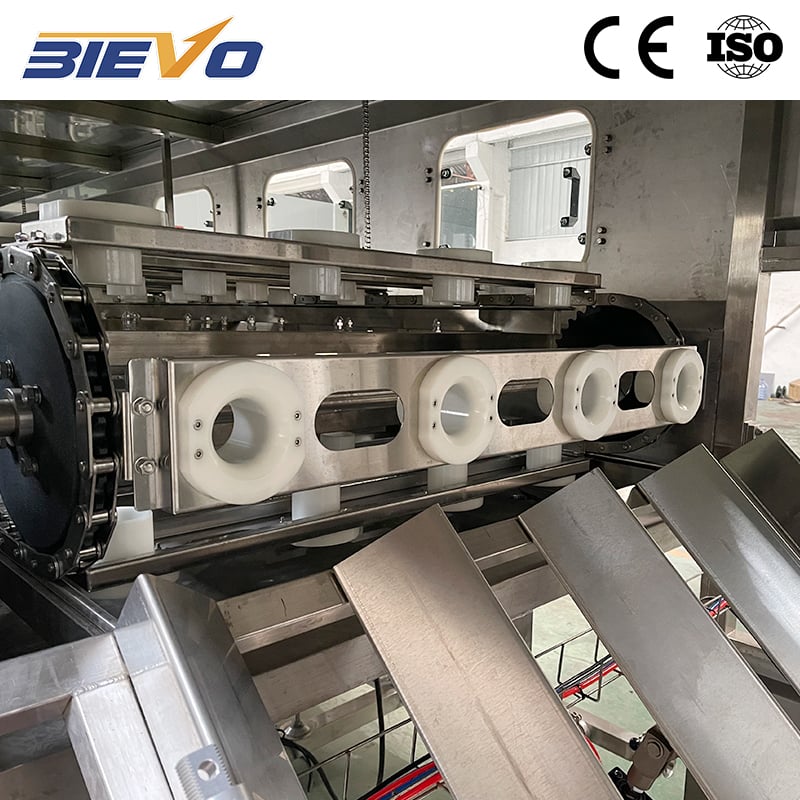

Stable Bottle-Neck Clamping: The suspending bottle-neck clamping design make the bottle stable during the high-speed moving conditions. By changing a few parts, it can meet the need of production of different types of bottles easily.
Stainless Steel Grab: The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle’s screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.

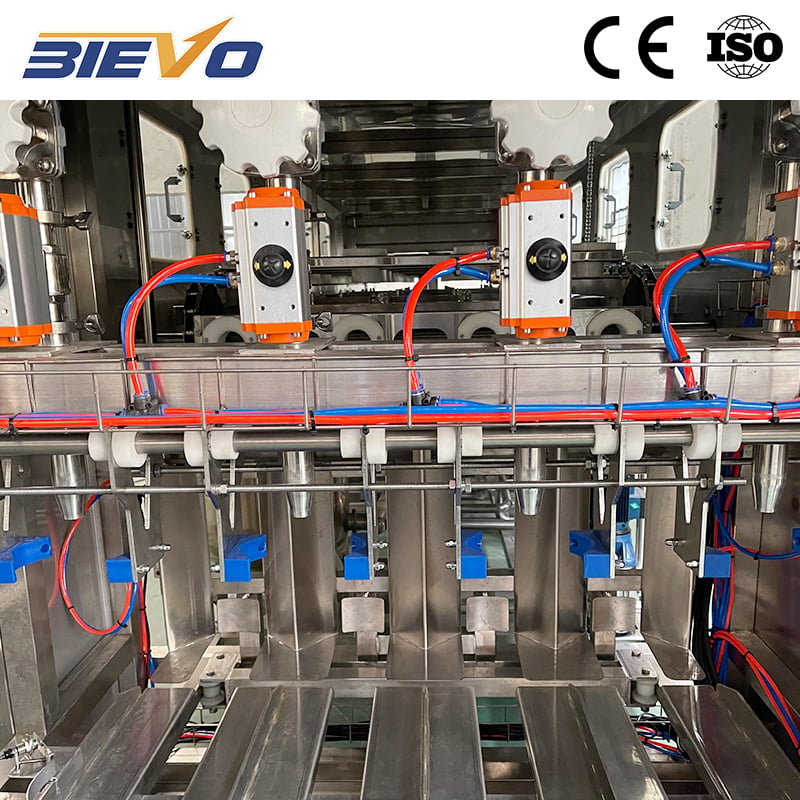

Fast & Stable Gravity Filling: The advanced gravity filling technology used in this machine makes the filling quick, steady and accurate.
Magnetic Torque Capping: Magnetic torque is used for screw capping, and the power of screw capping can be adjusted steplessly.Capping is reliable and do no harm to the caps.
Smart Control System: Advanced technologies, such as human-machine interface touch-screen and PLC program control are adopted in this machine.
Premium Materials & Components: All parts that have direct contact with the water are made of high quality stainless steel. The critical electricat components are from famous international companies,such as Mitsubishi, Omron to name a few.
