300ml-1500ml water filling machine
The bottled water filling machine produced by BIEVO Machinery is used in the production of non-carbonated drinks as pure water, mineral water and drinking water with optional capacity from 2000BPH-28000BPH.
- Overview
- Recommended Products
Overview
The bottled water filling machine produced by BIEVO Machinery is used in the production of non-carbonated drinks as pure water, mineral water and drinking water with optional capacity from 2000BPH-28000BPH.

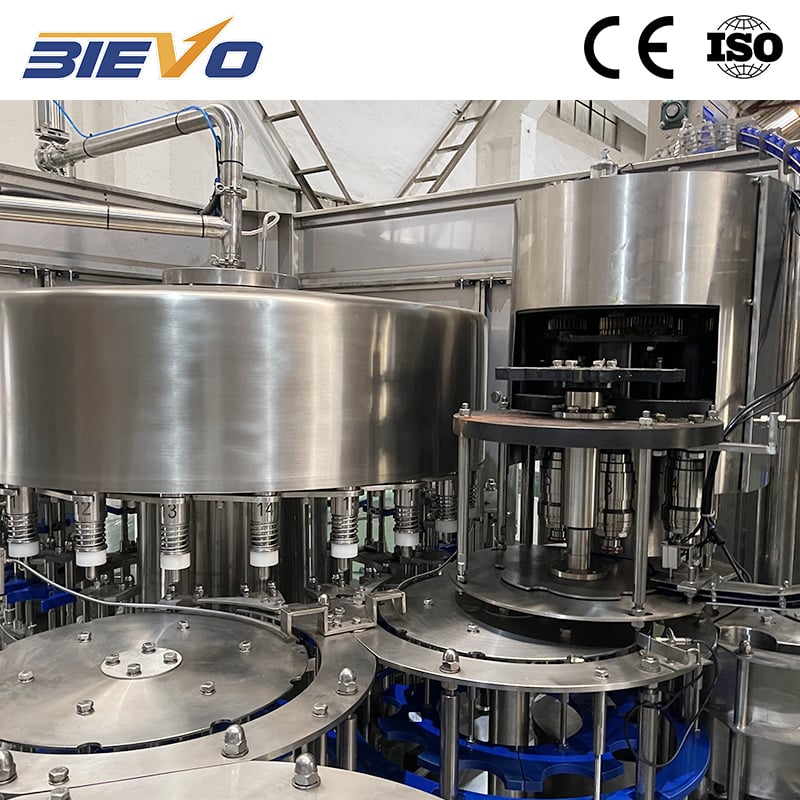

The water filling equipment is a machine that integrates washing, filling, and capping, developed and produced by BIEVO Machinery . The water filler adopts PLC control interface, fully automatic operation, stable operation, easy to clean and maintain, the best choice for small and medium-sized water filling machinery factories.
Suitable Products: Purified water, mineral water, spring water, etc.
Suitable Containers: PET bottles of various capacities and shapes
Filling Methods: Mechanical valve filling, flow meter filling, weight-based filling
Production Capacity: 2000-28000 BPH
Parameter
Model |
CGF12-12-6 |
CGF18-18-6 |
CGF24-24-8 |
CGF32-32-8 |
CGF40-40-10 |
CGF50-50-12 |
CGF60-60-15 |
Production Capacity:500ml(B/H) |
2000-4000 |
5000-6000 |
8000-12000 |
12000-15000 |
16000-20000 |
20000-24000 |
25000-28000 |
Filling precision |
≤±2mm |
||||||
Suitable bottle |
Round or square shaped bottle |
||||||
PET Bottle |
Bottle Diameter:φ50~φ100 Bottle Height:150mm~320mm Volume:330-1500ml |
||||||
Suitable Cap Standard |
Plastic Screw Cap |
||||||
Gas Source Pressure(MPa) |
0.6 |
||||||
Gas Consumption(m3/min) |
0.4 |
0.4 |
0.6 |
0.6 |
0.6 |
0.8 |
0.8 |
Total Power(Kw) |
4.6 |
4.6 |
6.4 |
7 |
11 |
12 |
15 |
Overall Dimensions(L*W*H)(mm) |
2450*1650*2100 |
2600*1800*2100 |
3000*2200*2400 |
4000*2220*2400 |
4100*2700*2600 |
4500*3400*2600 |
5400*4100*2600 |
Total Weight(Kg) |
2500 |
3300 |
480 |
6000 |
8000 |
9500 |
12300 |
Feature
Stable Bottle-Neck Clamping: The suspending bottle-neck clamping design make the bottle stable during the high-speed moving conditions. By changing a few parts, it can meet the need of production of different types of bottles easily.

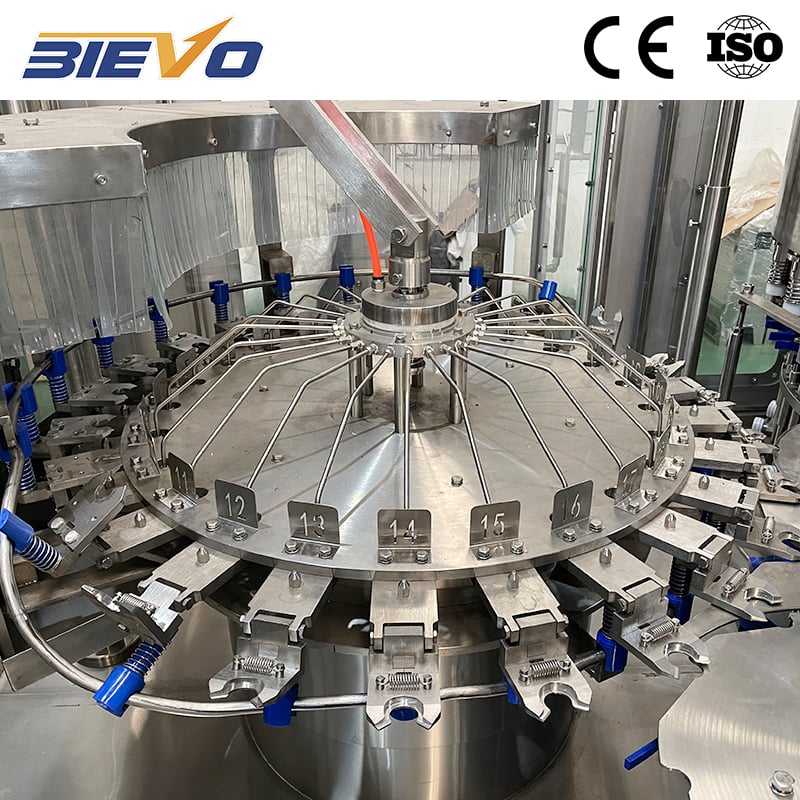

Stainless Steel Grab: The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle’s screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.

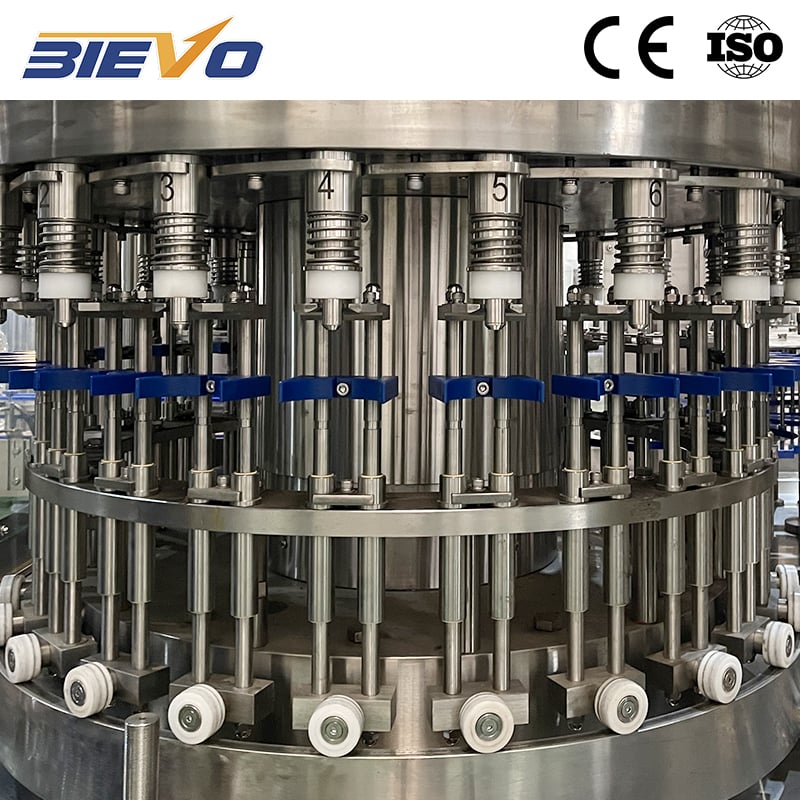

Fast & Stable Gravity Filling: The advanced gravity filling technology used in this machine makes the filling quick, steady and accurate.

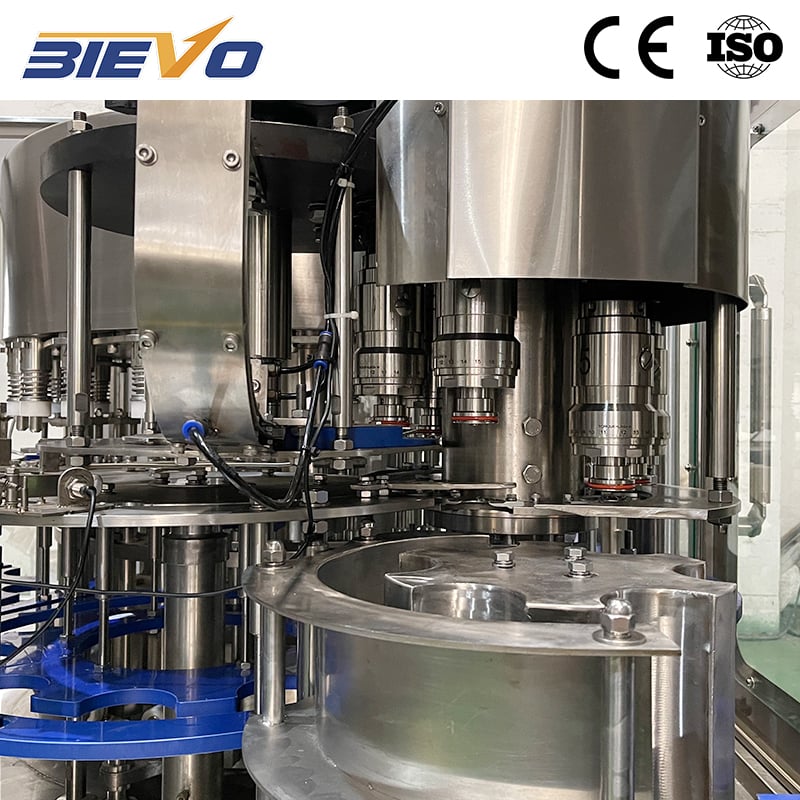

Magnetic Torque Capping: Magnetic torque is used for screw capping, and the power of screw capping can be adjusted steplessly.Capping is reliable and do no harm to the caps.
Smart Control System: Advanced technologies, such as human-machine interface touch-screen and PLC program control are adopted in this machine.
Premium Materials & Components: All parts that have direct contact with the water are made of high quality stainless steel. The critical electricat components are from famous international companies,such as Mitsubishi, Omron to name a few.
