Oil filling machine

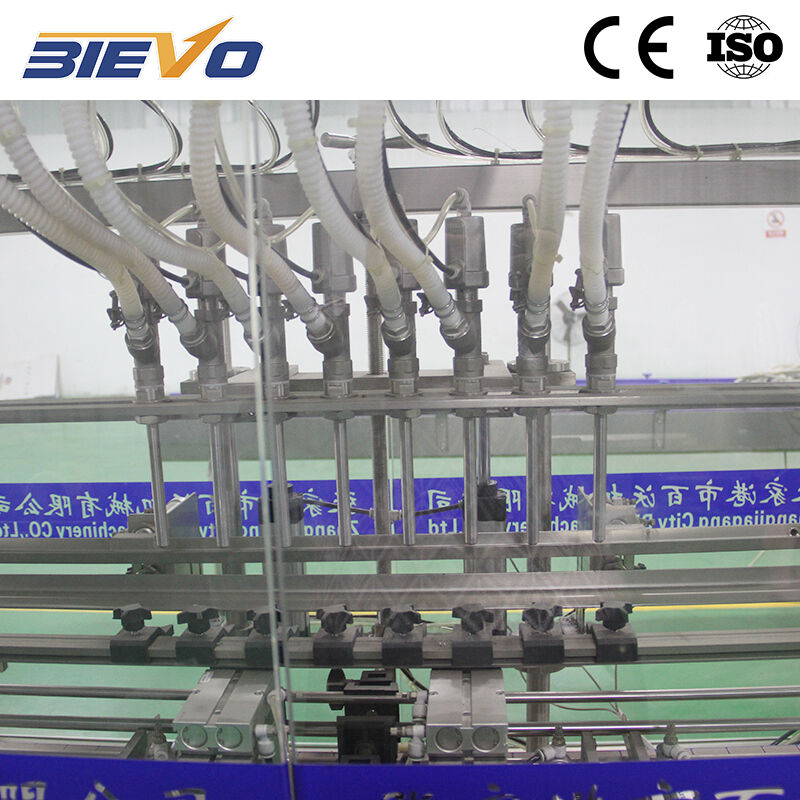

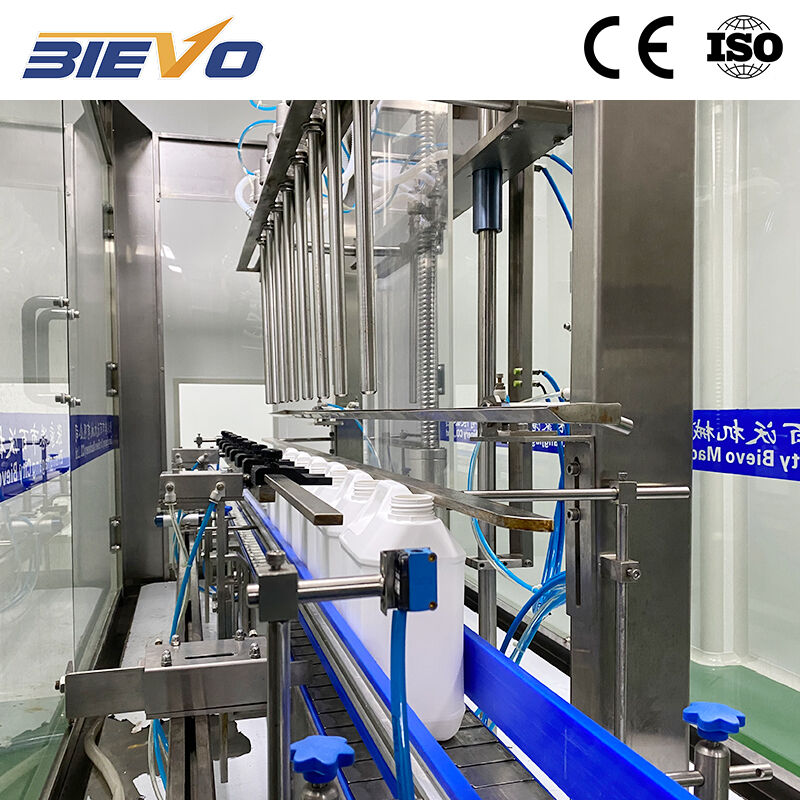

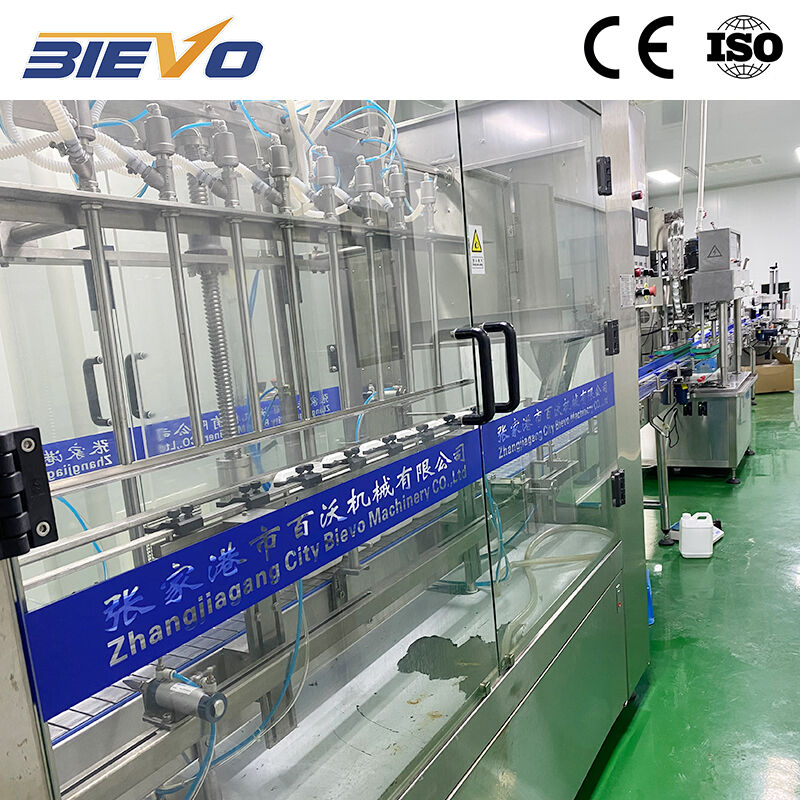

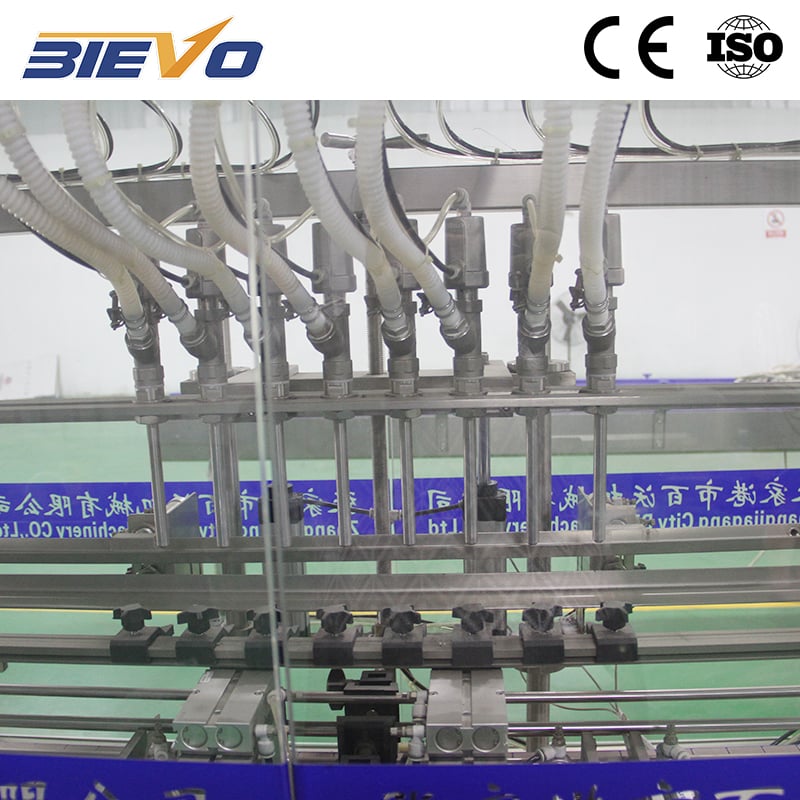

This machine is used to produce various PET bottle edible oil，like peanut oil， sunflower oil，olive oil, edible oil, coconut oil，adopt piston filling，fill accurately without leakage，also can pack ketchup，peanut butter，honey etc.Unique filling head design and vacuum backdraft system ensure no residual oil drip leakage during filling process，fast and slow double-speed filling，adjustable filing speed，and eliminate bottle overflow phenomenon.Edible oil filling machine can be powered filling without the need to equip high-level tanks, which simplifies the installation process and improves filling efficiency.The cap screw driver adopts the no-load system of torsion adjustment to ensure that the cap will not be worn out by excessive force when the cap is tightened.Touch-screen interface friendly，simple operation，PLC control system，fast operation，stable performance，excellent quality.Electrical and pneumatic parts are made of high-quality components to ensure stable operation of the whole machine.
- Overview
- Recommended Products
Overview
This machine is used to produce various PET bottle edible oil，like peanut oil， sunflower oil，olive oil, edible oil, coconut oil，adopt piston filling，fill accurately without leakage，also can pack ketchup，peanut butter，honey etc.Unique filling head design and vacuum backdraft system ensure no residual oil drip leakage during filling process，fast and slow double-speed filling，adjustable filing speed，and eliminate bottle overflow phenomenon.Edible oil filling machine can be powered filling without the need to equip high-level tanks, which simplifies the installation process and improves filling efficiency.The cap screw driver adopts the no-load system of torsion adjustment to ensure that the cap will not be worn out by excessive force when the cap is tightened.Touch-screen interface friendly，simple operation，PLC control system，fast operation，stable performance，excellent quality.Electrical and pneumatic parts are made of high-quality components to ensure stable operation of the whole machine.
Suitable Products: Peanut oil, Sunflower Oil, Olive oil, etc.
Suitable Containers: PET bottles of various shapes and capacities
Filling Methods: Contact filling or non-contact filling
Production Capacity: 720-4000 BPH
Parameter
Model |
SNYG series |
||||
No.of heads(Pcs) |
12 |
10 |
8 |
6 |
4 |
Filling volume(ml) |
200-1000,500-3000,1000-5000,1500-6000 |
||||
Productivity(bph) |
1600-4000 |
1400-3200 |
1200-2600 |
1000-1900 |
720-1300 |
Filling tolerance(%) |
＜0.5% |
||||
Voltage(V) |
According customer country’s standard |
||||
Power(kw) |
1.5 |
1.5 |
1.5 |
1.2 |
1.0 |
Gas pressure(Mpa) |
0.55-0.8Mpa |
||||
Gas consumption(M3/min) |
0.6 |
0.4 |
1.2 |
1.0 |
0.8 |
Feature
Stable Bottle-Neck Clamping: The suspending bottle-neck clamping design make the bottle stable during the high-speed moving conditions. By changing a few parts, it can meet the need of production of different types of bottles easily.
Stainless Steel Grab: The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle’s screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.
Fast & Stable Gravity Filling: The advanced gravity filling technology used in this machine makes the filling quick, steady and accurate.

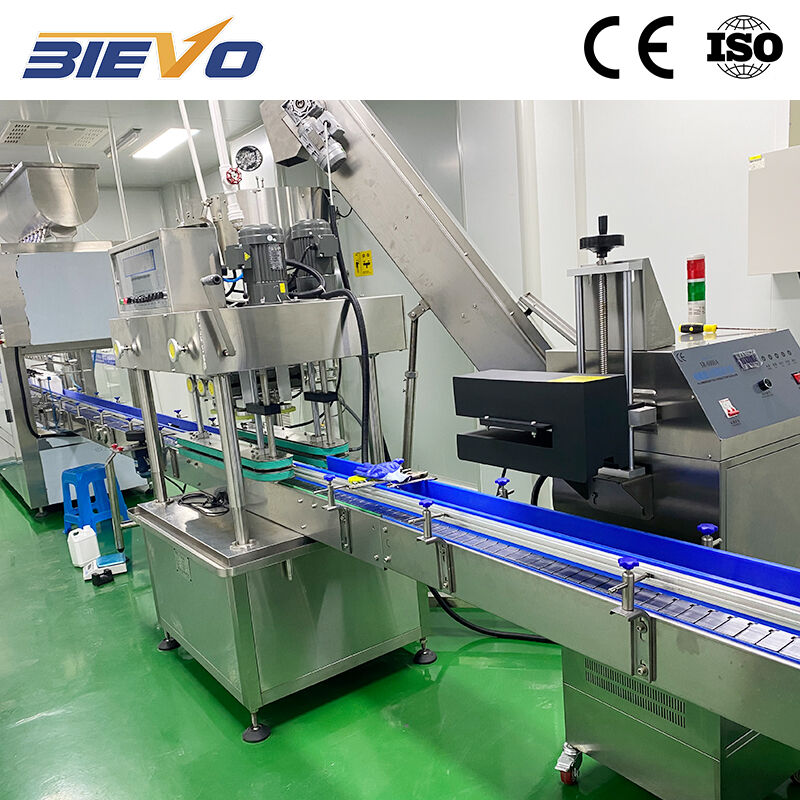

Magnetic Torque Capping: Magnetic torque is used for screw capping, and the power of screw capping can be adjusted steplessly.Capping is reliable and do no harm to the caps.
Smart Control System: Advanced technologies, such as human-machine interface touch-screen and PLC program control are adopted in this machine.
Premium Materials & Components: All parts that have direct contact with the water are made of high quality stainless steel. The critical electricat components are from famous international companies,such as Mitsubishi, Omron to name a few.
